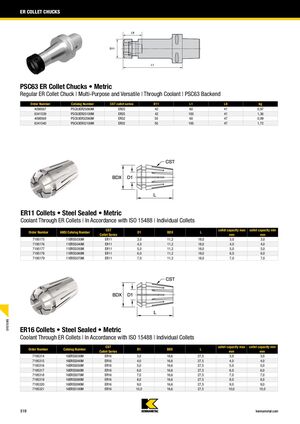

ER COLLET CHUCKS PSC63 ER Collet Chucks • Metric Regular ER Collet Chuck | Multi-Purpose and Versatile | Through Coolant | PSC63 Backend Order Number Catalog Number CST collet series D11 L1 L9 kg 4098567 PSC63ER25060M ER25 42 60 41 0,97 6341539 PSC63ER25100M ER25 42 100 41 1,36 4098569 PSC63ER32060M ER32 50 60 47 0,99 6341540 PSC63ER32100M ER32 50 100 47 1,72 ER11 Collets • Steel Sealed • Metric Coolant Through ER Collets | In Accordance with ISO 15488 | Individual Collets CST collet capacity max collet capacity min Order Number ANSI Catalog Number D1 BDX L Collet Series mm mm 7195175 11ERSS030M ER11 3,0 11,2 18,0 3,0 3,0 7195176 11ERSS040M ER11 4,0 11,2 18,0 4,0 4,0 7195177 11ERSS050M ER11 5,0 11,2 18,0 5,0 5,0 7195178 11ERSS060M ER11 6,0 11,2 18,0 6,0 6,0 7195179 11ERSS070M ER11 7,0 11,2 18,0 7,0 7,0 SYSTEMS ER16 Collets • Steel Sealed • Metric Coolant Through ER Collets | In Accordance with ISO 15488 | Individual Collets CST collet capacity max collet capacity min Order Number Catalog Number D1 BDX L Collet Series mm mm 7195314 16ERSS030M ER16 3,0 16,6 27,5 3,0 3,0 7195315 16ERSS040M ER16 4,0 16,6 27,5 4,0 4,0 7195316 16ERSS050M ER16 5,0 16,6 27,5 5,0 5,0 7195317 16ERSS060M ER16 6,0 16,6 27,5 6,0 6,0 7195318 16ERSS070M ER16 7,0 16,6 27,5 7,0 7,0 7195319 16ERSS080M ER16 8,0 16,6 27,5 8,0 8,0 7195320 16ERSS090M ER16 9,0 16,6 27,5 9,0 9,0 7195321 16ERSS100M ER16 10,0 16,6 27,5 10,0 10,0 E19 kennametal.com
