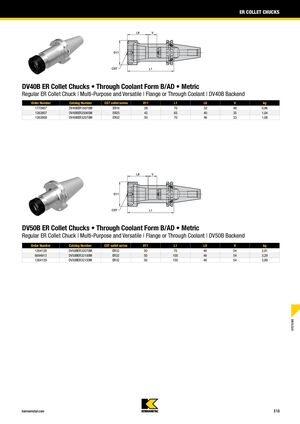

ER COLLET CHUCKS DV40B ER Collet Chucks • Through Coolant Form B/AD • Metric Regular ER Collet Chuck | Multi-Purpose and Versatile | Flange or Through Coolant | DV40B Backend Order Number Catalog Number CST collet series D11 L1 L9 V kg 1770957 DV40BER16070M ER16 28 70 32 48 0,96 1263807 DV40BER25065M ER25 42 65 40 35 1,04 1263809 DV40BER32070M ER32 50 70 46 33 1,08 DV50B ER Collet Chucks • Through Coolant Form B/AD • Metric Regular ER Collet Chuck | Multi-Purpose and Versatile | Flange or Through Coolant | DV50B Backend Order Number Catalog Number CST collet series D11 L1 L9 V kg 1264128 DV50BER32070M ER32 50 70 46 54 2,91 6694913 DV50BER32100M ER32 50 100 46 54 3,29 1264129 DV50BER32150M ER32 50 150 46 54 3,89 SYSTEMS kennametal.com E18
