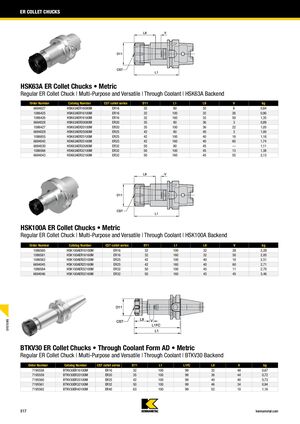

ER COLLET CHUCKS HSK63A ER Collet Chucks • Metric Regular ER Collet Chuck | Multi-Purpose and Versatile | Through Coolant | HSK63A Backend Order Number Catalog Number CST collet series D11 L1 L9 V kg 6694027 HSK63AER16080M ER16 32 80 32 8 0,84 1086425 HSK63AER16100M ER16 32 100 32 26 0,90 1086426 HSK63AER16160M ER16 32 160 32 50 1,35 6694028 HSK63AER20080M ER20 35 80 36 3 0,89 1086427 HSK63AER20100M ER20 35 100 36 22 1,05 6694029 HSK63AER25080M ER25 42 80 40 3 1,00 1086855 HSK63AER25100M ER25 42 100 40 18 1,18 6694042 HSK63AER25160M ER25 42 160 40 60 1,74 6694030 HSK63AER32080M ER32 50 80 45 — 1,11 1086566 HSK63AER32100M ER32 50 100 45 13 1,38 6694043 HSK63AER32160M ER32 50 160 45 55 2,13 HSK100A ER Collet Chucks • Metric Regular ER Collet Chuck | Multi-Purpose and Versatile | Through Coolant | HSK100A Backend Order Number Catalog Number CST collet series D11 L1 L9 V kg 1086560 HSK100AER16100M ER16 32 100 32 28 2,28 1086561 HSK100AER16160M ER16 32 160 32 50 2,85 1086563 HSK100AER25100M ER25 42 100 40 10 2,51 6694045 HSK100AER25160M ER25 42 160 40 60 2,71 1086584 HSK100AER32100M ER32 50 100 45 11 2,70 6694046 HSK100AER32160M ER32 50 160 45 45 3,46 SYSTEMS BTKV30 ER Collet Chucks • Through Coolant Form AD • Metric Regular ER Collet Chuck | Multi-Purpose and Versatile | Through Coolant | BTKV30 Backend Order Number Catalog Number CST collet series D11 L1 L1FC L9 V kg 7195558 BTKV30ER16100M ER16 32 100 99 32 48 0,67 7195559 BTKV30ER20100M ER20 35 100 99 36 44 0,72 7195560 BTKV30ER25100M ER25 42 100 99 40 40 0,73 7195561 BTKV30ER32100M ER32 50 100 99 46 34 0,94 7195562 BTKV30ER40100M ER40 63 100 99 52 10 1,16 E17 kennametal.com
