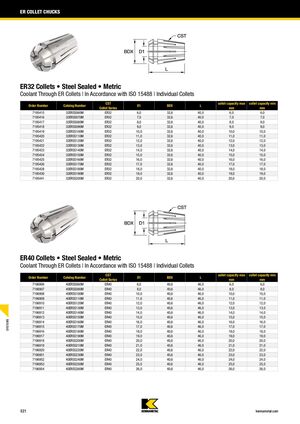

ER COLLET CHUCKS ER32 Collets • Steel Sealed • Metric Coolant Through ER Collets | In Accordance with ISO 15488 | Individual Collets CST collet capacity max collet capacity min Order Number Catalog Number D1 BDX L Collet Series mm mm 7195415 32ERSS060M ER32 6,0 32,6 40,0 6,0 6,0 7195416 32ERSS070M ER32 7,0 32,6 40,0 7,0 7,0 7195417 32ERSS080M ER32 8,0 32,6 40,0 8,0 8,0 7195418 32ERSS090M ER32 9,0 32,6 40,0 9,0 9,0 7195419 32ERSS100M ER32 10,0 32,6 40,0 10,0 10,0 7195420 32ERSS110M ER32 11,0 32,6 40,0 11,0 11,0 7195421 32ERSS120M ER32 12,0 32,6 40,0 12,0 12,0 7195422 32ERSS130M ER32 13,0 32,6 40,0 13,0 13,0 7195423 32ERSS140M ER32 14,0 32,6 40,0 14,0 14,0 7195424 32ERSS150M ER32 15,0 32,6 40,0 15,0 15,0 7195425 32ERSS160M ER32 16,0 32,6 40,0 16,0 16,0 7195426 32ERSS170M ER32 17,0 32,6 40,0 17,0 17,0 7195428 32ERSS180M ER32 18,0 32,6 40,0 18,0 18,0 7195430 32ERSS190M ER32 19,0 32,6 40,0 19,0 19,0 7195441 32ERSS200M ER32 20,0 32,6 40,0 20,0 20,0 ER40 Collets • Steel Sealed • Metric Coolant Through ER Collets | In Accordance with ISO 15488 | Individual Collets CST collet capacity max collet capacity min Order Number Catalog Number D1 BDX L Collet Series mm mm 7196906 40ERSS060M ER40 6,0 40,6 46,0 6,0 6,0 7196907 40ERSS080M ER40 8,0 40,6 46,0 8,0 8,0 7196908 40ERSS100M ER40 10,0 40,6 46,0 10,0 10,0 7196909 40ERSS110M ER40 11,0 40,6 46,0 11,0 11,0 7196910 40ERSS120M ER40 12,0 40,6 46,0 12,0 12,0 7196911 40ERSS130M ER40 13,0 40,6 46,0 13,0 13,0 7196912 40ERSS140M ER40 14,0 40,6 46,0 14,0 14,0 7196913 40ERSS150M ER40 15,0 40,6 46,0 15,0 15,0 SYSTEMS 7196914 40ERSS160M ER40 16,0 40,6 46,0 16,0 16,0 7196915 40ERSS170M ER40 17,0 40,6 46,0 17,0 17,0 7196916 40ERSS180M ER40 18,0 40,6 46,0 18,0 18,0 7196917 40ERSS190M ER40 19,0 40,6 46,0 19,0 19,0 7196918 40ERSS200M ER40 20,0 40,6 46,0 20,0 20,0 7196919 40ERSS210M ER40 21,0 40,6 46,0 21,0 21,0 7196920 40ERSS220M ER40 22,0 40,6 46,0 22,0 22,0 7196951 40ERSS230M ER40 23,0 40,6 46,0 23,0 23,0 7196952 40ERSS240M ER40 24,0 40,6 46,0 24,0 24,0 7196953 40ERSS250M ER40 25,0 40,6 46,0 25,0 25,0 7196954 40ERSS260M ER40 26,0 40,6 46,0 26,0 26,0 E21 kennametal.com
