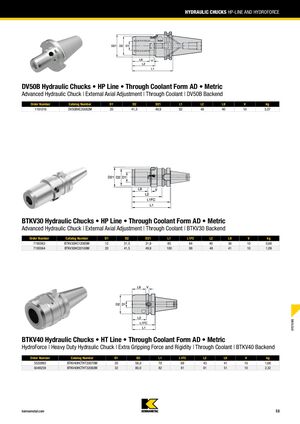

HYDRAULIC CHUCKS HP-LINE AND HYDROFORCE DV50B Hydraulic Chucks • HP Line • Through Coolant Form AD • Metric Advanced Hydraulic Chuck | External Axial Adjustment | Through Coolant | DV50B Backend Order Number Catalog Number D1 D2 D21 L1 L2 L9 V kg 1191016 DV50BHC20082M 20 41,5 49,9 82 48 40 10 3,07 BTKV30 Hydraulic Chucks • HP Line • Through Coolant Form AD • Metric Advanced Hydraulic Chuck | External Axial Adjustment | Through Coolant | BTKV30 Backend Order Number Catalog Number D1 D2 D21 L1 L1FC L2 L9 V kg 7195563 BTKV30HC12085M 12 31,5 31,9 85 84 40 36 10 0,68 7195564 BTKV30HC20100M 20 41,5 49,9 100 99 48 41 10 1,09 SYSTEMS BTKV40 Hydraulic Chucks • HT Line • Through Coolant Form AD • Metric HydroForce | Heavy Duty Hydraulic Chuck | Extra Gripping Force and Rigidity | Through Coolant | BTKV40 Backend Order Number Catalog Number D1 D2 L1 L1FC L2 L9 V kg 5520993 BTKV40HCTHT20070M 20 58,0 70 69 43 41 10 1,68 6048259 BTKV40HCTHT32082M 32 80,0 82 81 81 51 10 2,32 kennametal.com E8
