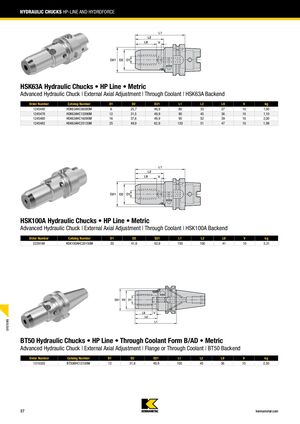

HYDRAULIC CHUCKS HP-LINE AND HYDROFORCE HSK63A Hydraulic Chucks • HP Line • Metric Advanced Hydraulic Chuck | External Axial Adjustment | Through Coolant | HSK63A Backend Order Number Catalog Number D1 D2 D21 L1 L2 L9 V kg 1245440 HSK63AHC06080M 6 25,7 49,9 80 33 27 10 1,00 1245478 HSK63AHC12090M 12 31,5 49,9 90 45 36 10 1,10 1245480 HSK63AHC16095M 16 37,6 49,9 95 52 39 10 2,00 1245482 HSK63AHC25120M 25 49,9 62,9 120 51 47 10 1,99 HSK100A Hydraulic Chucks • HP Line • Metric Advanced Hydraulic Chuck | External Axial Adjustment | Through Coolant | HSK100A Backend Order Number Catalog Number D1 D2 D21 L1 L2 L9 V kg 2229199 HSK100AHC20150M 20 41,6 62,9 150 100 41 10 3,31 SYSTEMS BT50 Hydraulic Chucks • HP Line • Through Coolant Form B/AD • Metric Advanced Hydraulic Chuck | External Axial Adjustment | Flange or Through Coolant | BT50 Backend Order Number Catalog Number D1 D2 D21 L1 L2 L9 V kg 1315355 BT50BHC12100M 12 31,6 49,9 100 45 36 10 2,50 E7 kennametal.com
