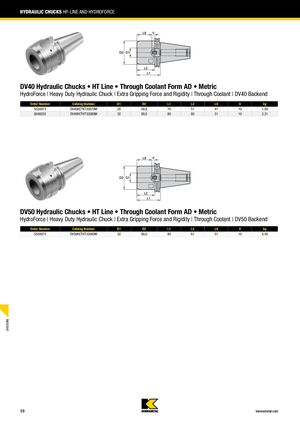

HYDRAULIC CHUCKS HP-LINE AND HYDROFORCE DV40 Hydraulic Chucks • HT Line • Through Coolant Form AD • Metric HydroForce | Heavy Duty Hydraulic Chuck | Extra Gripping Force and Rigidity | Through Coolant | DV40 Backend Order Number Catalog Number D1 D2 L1 L2 L9 V kg 5520973 DV40HCTHT20070M 20 58,0 70 51 41 10 1,58 6048255 DV40HCTHT32080M 32 80,0 80 80 51 10 2,31 DV50 Hydraulic Chucks • HT Line • Through Coolant Form AD • Metric HydroForce | Heavy Duty Hydraulic Chuck | Extra Gripping Force and Rigidity | Through Coolant | DV50 Backend Order Number Catalog Number D1 D2 L1 L2 L9 V kg 5520974 DV50HCTHT32080M 32 80,0 80 61 51 10 4,45 SYSTEMS E9 kennametal.com
