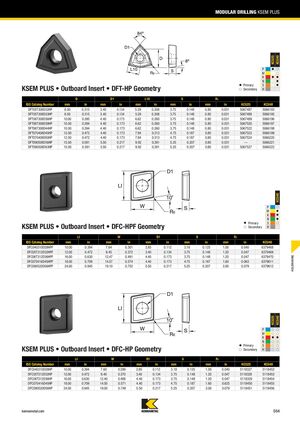

МОДУЛЬНОЕ СВЕРЛЕНИЕ KSEM PLUS
KSEM PLUS • Наружная пластина • Геометрия DFT-HP
| Номер по каталогу ISO | D | D1 | L10 | S | R | KCU25 | KCU40 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFT05T308D32HP | 8.00 | 0.315 | 3.40 | 0.134 | 5.29 | 0.208 | 3.75 | 0.148 | 0.80 | 0.031 | 5067487 | 5066193 |
| DFT05T308D33HP | 8.00 | 0.315 | 3.40 | 0.134 | 5.29 | 0.208 | 3.75 | 0.148 | 0.80 | 0.031 | 5067488 | 5066195 |
| DFT06T308D36HP | 10.00 | 0.395 | 4.40 | 0.173 | 6.62 | 0.260 | 3.75 | 0.148 | 0.80 | 0.031 | 5067489 | 5066196 |
| DFT06T308D39HP | 10.00 | 0.394 | 4.40 | 0.173 | 6.62 | 0.260 | 3.75 | 0.148 | 0.80 | 0.031 | 5067520 | 5066197 |
| DFT06T308D44HP | 10.00 | 0.394 | 4.40 | 0.173 | 6.62 | 0.260 | 3.75 | 0.148 | 0.80 | 0.031 | 5067522 | 5066198 |
| DFT070408D45HP | 12.00 | 0.472 | 4.40 | 0.173 | 7.94 | 0.313 | 4.75 | 0.187 | 0.80 | 0.031 | 5067523 | 5066199 |
| DFT070408D50HP | 12.00 | 0.472 | 4.40 | 0.173 | 7.94 | 0.313 | 4.75 | 0.187 | 0.80 | 0.031 | 5067524 | 5066220 |
| DFT090508D56HP | 15.00 | 0.591 | 5.50 | 0.217 | 9.92 | 0.391 | 5.25 | 0.207 | 0.80 | 0.031 | — | 5066221 |
| DFT090508D63HP | 15.00 | 0.591 | 5.50 | 0.217 | 9.92 | 0.391 | 5.25 | 0.207 | 0.80 | 0.031 | 5067527 | 5066222 |
KSEM PLUS • Наружная пластина • Геометрия DFC-HPF
| Номер по каталогу ISO | LI | W | D1 | S | R | KCU40 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DFC040310D28HPF | 10.00 | 0.394 | 7.64 | 0.301 | 2.85 | 0.112 | 3.18 | 0.125 | 1.00 | 0.040 | 6379468 |
| DFC05T312D32HPF | 12.00 | 0.472 | 9.45 | 0.372 | 3.40 | 0.134 | 3.75 | 0.148 | 1.20 | 0.047 | 6379469 |
| DFC06T312D36HPF | 16.00 | 0.630 | 12.47 | 0.491 | 4.40 | 0.173 | 3.75 | 0.148 | 1.20 | 0.047 | 6379470 |
| DFC070416D45HPF | 18.00 | 0.709 | 14.57 | 0.574 | 4.40 | 0.173 | 4.75 | 0.187 | 1.60 | 0.063 | 6379611 |
| DFC090520D56HPF | 24.00 | 0.945 | 19.10 | 0.752 | 5.50 | 0.217 | 5.25 | 0.207 | 2.00 | 0.079 | 6379612 |
KSEM PLUS • Наружная пластина • Геометрия DFC-HP
| Номер по каталогу ISO | LI | W | D1 | S | R | KCU25 | KCU40 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFC040310D28HP | 10.00 | 0.394 | 7.60 | 0.299 | 2.85 | 0.112 | 3.18 | 0.125 | 1.00 | 0.040 | 5118327 | 5118452 |
| DFC05T312D32HP | 12.00 | 0.472 | 9.40 | 0.370 | 3.40 | 0.134 | 3.75 | 0.148 | 1.20 | 0.047 | 5118328 | 5118453 |
| DFC06T312D36HP | 16.00 | 0.630 | 12.40 | 0.488 | 4.40 | 0.173 | 3.75 | 0.148 | 1.20 | 0.047 | 5118329 | 5118454 |
| DFC070416D45HP | 18.00 | 0.709 | 14.50 | 0.571 | 4.40 | 0.173 | 4.75 | 0.187 | 1.60 | 0.625 | 5118450 | 5118455 |
| DFC090520D56HP | 24.00 | 0.945 | 19.00 | 0.748 | 5.50 | 0.217 | 5.25 | 0.207 | 2.00 | 0.079 | 5118451 | 5118456 |
