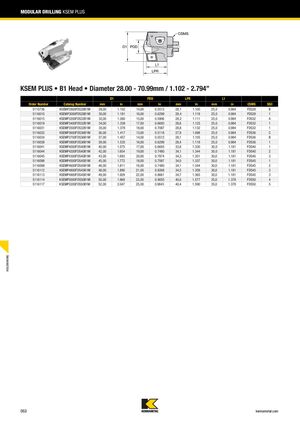

МОДУЛЬНОЕ СВЕРЛЕНИЕ KSEM PLUS
KSEM PLUS • Головка типа B1 • Диаметр 28,00 - 70,99 мм
| Номер заказа | Номер по каталогу | D1 | PDD | LPR | L1 | CSMS | SSC | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5115736 | KSEMP2800FDS28B1M | 28,00 | 1.102 | 14,00 | 0.5512 | 28,1 | 1.105 | 25,0 | 0.984 | FDS28 | B |
| 5116010 | KSEMP3000FDS28B1M | 30,00 | 1.181 | 16,00 | 0.6299 | 28,4 | 1.118 | 25,0 | 0.984 | FDS28 | 1 |
| 5116015 | KSEMP3200FDS32B1M | 32,00 | 1.260 | 15,00 | 0.5906 | 28,2 | 1.111 | 25,0 | 0.984 | FDS32 | A |
| 5116019 | KSEMP3400FDS32B1M | 34,00 | 1.339 | 17,00 | 0.6693 | 28,6 | 1.125 | 25,0 | 0.984 | FDS32 | 1 |
| 5116031 | KSEMP3500FDS32B1M | 35,00 | 1.378 | 18,00 | 0.7087 | 28,8 | 1.132 | 25,0 | 0.984 | FDS32 | 1 |
| 5116032 | KSEMP3600FDS36B1M | 36,00 | 1.417 | 13,00 | 0.5118 | 27,9 | 1.098 | 25,0 | 0.984 | FDS36 | C |
| 5116034 | KSEMP3700FDS36B1M | 37,00 | 1.457 | 14,00 | 0.5512 | 28,1 | 1.105 | 25,0 | 0.984 | FDS36 | B |
| 5116038 | KSEMP3900FDS36B1M | 39,00 | 1.535 | 16,00 | 0.6299 | 28,4 | 1.118 | 25,0 | 0.984 | FDS36 | 1 |
| 5116041 | KSEMP4000FDS40B1M | 40,00 | 1.575 | 17,00 | 0.6693 | 33,8 | 1.330 | 30,0 | 1.181 | FDS40 | 1 |
| 5116044 | KSEMP4200FDS40B1M | 42,00 | 1.654 | 19,00 | 0.7480 | 34,1 | 1.344 | 30,0 | 1.181 | FDS40 | 2 |
| 5116045 | KSEMP4300FDS40B1M | 43,00 | 1.693 | 20,00 | 0.7874 | 34,3 | 1.351 | 30,0 | 1.181 | FDS40 | 3 |
| 5116098 | KSEMP4500FDS45B1M | 45,00 | 1.772 | 18,00 | 0.7087 | 34,0 | 1.337 | 30,0 | 1.181 | FDS45 | 1 |
| 5116099 | KSEMP4600FDS45B1M | 46,00 | 1.811 | 19,00 | 0.7480 | 34,1 | 1.344 | 30,0 | 1.181 | FDS45 | 2 |
| 5116112 | KSEMP4800FDS45B1M | 48,00 | 1.890 | 21,00 | 0.8268 | 34,5 | 1.358 | 30,0 | 1.181 | FDS45 | 3 |
| 5116113 | KSEMP4900FDS45B1M | 49,00 | 1.929 | 22,00 | 0.8661 | 34,7 | 1.365 | 30,0 | 1.181 | FDS45 | 3 |
| 5116114 | KSEMP5000FDS50B1M | 50,00 | 1.969 | 23,00 | 0.9055 | 40,0 | 1.577 | 35,0 | 1.378 | FDS50 | 4 |
| 5116117 | KSEMP5200FDS50B1M | 52,00 | 2.047 | 25,00 | 0.9843 | 40,4 | 1.590 | 35,0 | 1.378 | FDS50 | 5 |
