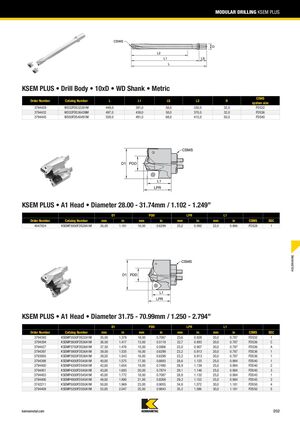

MODULAR DRILLING KSEM PLUS KSEM PLUS • Drill Body • 10xD • WD Shank • Metric CSWS Order Number Catalog Number L L1 LS L2 D system size 3794429 WD32FDS32391M 449,0 391,0 58,0 330,0 32,0 FDS32 3794432 WD32FDS36439M 497,0 439,0 58,0 370,0 32,0 FDS36 3794445 WD50FDS40491M 559,0 491,0 68,0 415,0 50,0 FDS40 KSEM PLUS • A1 Head • Diameter 28.00 - 31.74mm / 1.102 - 1.249” D1 PDD LPR L1 Order Number Catalog Number mm in mm in mm in mm in CSMS SSC 4047824 KSEMP3000FDS28A1M 30,00 1.181 16,00 0.6299 25,2 0.992 22,0 0.866 FDS28 1 HOLEMAKING KSEM PLUS • A1 Head • Diameter 31.75 - 70.99mm / 1.250 - 2.794” D1 PDD LPR L1 Order Number Catalog Number mm in mm in mm in mm in CSMS SSC 3794393 KSEMP3500FDS32A1M 35,00 1.378 18,00 0.7087 23,6 0.928 20,0 0.787 FDS32 1 3794394 KSEMP3600FDS36A1M 36,00 1.417 13,00 0.5118 22,7 0.893 20,0 0.787 FDS36 C 3794427 KSEMP3750FDS36A1M 37,50 1.476 15,00 0.5906 23,0 0.907 20,0 0.787 FDS36 A 3794397 KSEMP3900FDS36A1M 39,00 1.535 16,00 0.6299 23,2 0.913 20,0 0.787 FDS36 1 3793950 KSEMP3920FDS36A1M 39,20 1.543 16,00 0.6299 23,2 0.913 20,0 0.787 FDS36 1 3794398 KSEMP4000FDS40A1M 40,00 1.575 17,00 0.6693 28,6 1.125 25,0 0.984 FDS40 1 3794400 KSEMP4200FDS40A1M 42,00 1.654 19,00 0.7480 28,9 1.139 25,0 0.984 FDS40 2 3794401 KSEMP4300FDS40A1M 43,00 1.693 20,00 0.7874 29,1 1.146 25,0 0.984 FDS40 3 3794403 KSEMP4500FDS45A1M 45,00 1.772 18,00 0.7087 28,8 1.132 25,0 0.984 FDS45 1 3794406 KSEMP4800FDS45A1M 48,00 1.890 21,00 0.8268 29,3 1.153 25,0 0.984 FDS45 3 3742211 KSEMP5000FDS50A1M 50,00 1.969 23,00 0.9055 34,8 1.372 30,0 1.181 FDS50 4 3794409 KSEMP5200FDS50A1M 52,00 2.047 25,00 0.9843 35,2 1.386 30,0 1.181 FDS50 5 kennametal.com D52
