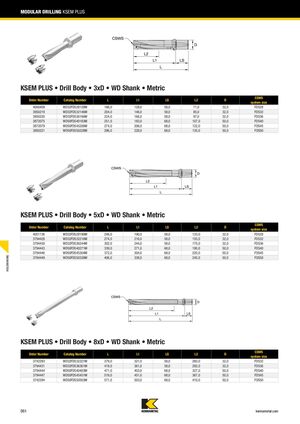

MODULAR DRILLING KSEM PLUS KSEM PLUS • Drill Body • 3xD • WD Shank • Metric CSWS Order Number Catalog Number L L1 LS L2 D system size 4000409 WD32FDS28128M 186,0 128,0 58,0 71,0 32,0 FDS28 3950219 WD32FDS32146M 204,0 146,0 58,0 85,0 32,0 FDS32 3950220 WD32FDS36166M 224,0 166,0 58,0 97,0 32,0 FDS36 3872075 WD50FDS40183M 251,0 183,0 68,0 107,0 50,0 FDS40 3872079 WD50FDS45206M 274,0 206,0 68,0 122,0 50,0 FDS45 3950221 WD50FDS50228M 296,0 228,0 68,0 135,0 50,0 FDS50 KSEM PLUS • Drill Body • 5xD • WD Shank • Metric CSWS Order Number Catalog Number L L1 LS L2 D system size 4051136 WD32FDS28190M 248,0 190,0 58,0 133,0 32,0 FDS28 3794428 WD32FDS32216M 274,0 216,0 58,0 155,0 32,0 FDS32 3794430 WD32FDS36244M 302,0 244,0 58,0 175,0 32,0 FDS36 3794443 WD50FDS40271M 339,0 271,0 68,0 195,0 50,0 FDS40 3794446 WD50FDS45304M 372,0 304,0 68,0 220,0 50,0 FDS45 HOLEMAKING 3794449 WD50FDS50338M 406,0 338,0 68,0 245,0 50,0 FDS50 KSEM PLUS • Drill Body • 8xD • WD Shank • Metric CSWS Order Number Catalog Number L L1 LS L2 D system size 3742293 WD32FDS32321M 379,0 321,0 58,0 260,0 32,0 FDS32 3794431 WD32FDS36361M 419,0 361,0 58,0 292,0 32,0 FDS36 3794444 WD50FDS40403M 471,0 403,0 68,0 327,0 50,0 FDS40 3794447 WD50FDS45451M 519,0 451,0 68,0 367,0 50,0 FDS45 3742294 WD50FDS50503M 571,0 503,0 68,0 410,0 50,0 FDS50 D51 kennametal.com
