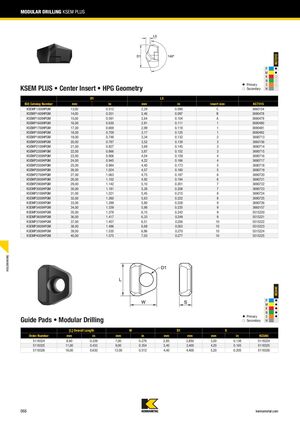

МОДУЛЬНОЕ СВЕРЛЕНИЕ KSEM PLUS
KSEM PLUS • Центральная пластина • Геометрия HPG
| Номер по каталогу ISO | D1 | L5 | Размер пластины | KC7315 | ||
|---|---|---|---|---|---|---|
| KSEMP1300HPGM | 13,00 | 0.512 | 2,29 | 0.090 | C | 3660154 |
| KSEMP1400HPGM | 14,00 | 0.551 | 2,46 | 0.097 | B | 3690478 |
| KSEMP1500HPGM | 15,00 | 0.591 | 2,64 | 0.104 | A | 3690479 |
| KSEMP1600HPGM | 16,00 | 0.630 | 2,81 | 0.111 | 1 | 3690480 |
| KSEMP1700HPGM | 17,00 | 0.669 | 2,99 | 0.118 | 1 | 3690481 |
| KSEMP1800HPGM | 18,00 | 0.709 | 3,17 | 0.125 | 1 | 3690482 |
| KSEMP1900HPGM | 19,00 | 0.748 | 3,34 | 0.132 | 2 | 3690713 |
| KSEMP2000HPGM | 20,00 | 0.787 | 3,52 | 0.139 | 3 | 3660156 |
| KSEMP2100HPGM | 21,00 | 0.827 | 3,69 | 0.145 | 3 | 3690714 |
| KSEMP2200HPGM | 22,00 | 0.866 | 3,87 | 0.152 | 3 | 3690715 |
| KSEMP2300HPGM | 23,00 | 0.906 | 4,04 | 0.159 | 4 | 3690716 |
| KSEMP2400HPGM | 24,00 | 0.945 | 4,22 | 0.166 | 4 | 3690717 |
| KSEMP2500HPGM | 25,00 | 0.984 | 4,40 | 0.173 | 5 | 3690718 |
| KSEMP2600HPGM | 26,00 | 1.024 | 4,57 | 0.180 | 5 | 3690719 |
| KSEMP2700HPGM | 27,00 | 1.063 | 4,75 | 0.187 | 6 | 3690720 |
| KSEMP2800HPGM | 28,00 | 1.102 | 4,92 | 0.194 | 6 | 3690721 |
| KSEMP2900HPGM | 29,00 | 1.142 | 5,10 | 0.201 | 7 | 3690722 |
| KSEMP3000HPGM | 30,00 | 1.181 | 5,28 | 0.208 | 7 | 3690723 |
| KSEMP3100HPGM | 31,00 | 1.221 | 5,45 | 0.215 | 8 | 3690724 |
| KSEMP3200HPGM | 32,00 | 1.260 | 5,63 | 0.222 | 8 | 3690725 |
| KSEMP3300HPGM | 33,00 | 1.299 | 5,80 | 0.228 | 9 | 3690726 |
| KSEMP3400HPGM | 34,00 | 1.339 | 5,98 | 0.235 | 9 | 3660157 |
| KSEMP3500HPGM | 35,00 | 1.378 | 6,15 | 0.242 | 9 | 5515220 |
| KSEMP3600HPGM | 36,00 | 1.417 | 6,33 | 0.249 | 9 | 5515221 |
| KSEMP3700HPGM | 37,00 | 1.457 | 6,51 | 0.256 | 10 | 5515222 |
| KSEMP3800HPGM | 38,00 | 1.496 | 6,68 | 0.263 | 10 | 5515223 |
| KSEMP3900HPGM | 39,00 | 1.535 | 6,86 | 0.270 | 10 | 5515224 |
| KSEMP4000HPGM | 40,00 | 1.575 | 7,03 | 0.277 | 10 | 5515225 |
Направляющие пластины • Модульное сверление
| Номер заказа | Общая длина [L] | W | D1 | S | KCU40 | ||||
|---|---|---|---|---|---|---|---|---|---|
| 5118324 | 8,60 | 0.339 | 7,00 | 0.276 | 2,85 | 2,850 | 3,50 | 0.138 | 5118324 |
| 5118325 | 11,00 | 0.433 | 9,00 | 0.354 | 3,40 | 3,400 | 4,20 | 0.165 | 5118325 |
| 5118326 | 16,00 | 0.630 | 13,00 | 0.512 | 4,40 | 4,400 | 5,20 | 0.205 | 5118326 |
