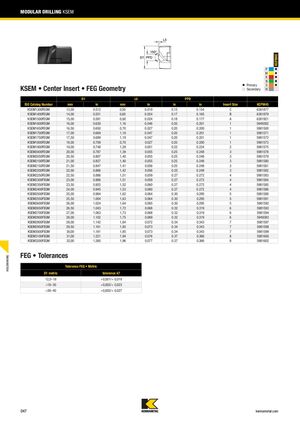

MODULAR DRILLING KSEM KCPM45 P 䢇 M 䢇 K 䢇 N 䢇 䢇 Primary S 䢇 KSEM • Center Insert • FEG Geometry 嘷 Secondary H D1 L5 PPD ISO Catalog Number mm in mm in in in Insert Size KCPM45 KSEM1300FEGM 13,00 0.512 0,50 0.019 0.15 0.154 C 6381877 KSEM1400FEGM 14,00 0.551 0,60 0.024 0.17 0.165 B 6381879 KSEM1500FEGM 15,00 0.591 0,60 0.024 0.18 0.177 A 6381921 KSEM1600FEGM 16,00 0.630 1,16 0.046 0.20 0.201 1 5949382 KSEM1650FEGM 16,50 0.650 0,70 0.027 0.20 0.200 1 5981500 KSEM1700FEGM 17,00 0.669 1,18 0.047 0.20 0.201 1 5981571 KSEM1750FEGM 17,50 0.689 1,19 0.047 0.20 0.201 1 5981572 KSEM1800FEGM 18,00 0.709 0,70 0.027 0.20 0.200 1 5981573 KSEM1900FEGM 19,00 0.748 1,29 0.051 0.22 0.224 2 5981575 KSEM2000FEGM 20,00 0.787 1,39 0.055 0.25 0.248 3 5981578 KSEM2050FEGM 20,50 0.807 1,40 0.055 0.25 0.248 3 5981579 KSEM2100FEGM 21,00 0.827 1,40 0.055 0.25 0.248 3 5981580 KSEM2150FEGM 21,50 0.847 1,41 0.056 0.25 0.248 3 5981581 KSEM2200FEGM 22,00 0.866 1,42 0.056 0.25 0.248 3 5981582 KSEM2250FEGM 22,50 0.886 1,51 0.059 0.27 0.272 4 5981583 KSEM2300FEGM 23,00 0.906 1,51 0.059 0.27 0.272 4 5981584 KSEM2350FEGM 23,50 0.925 1,52 0.060 0.27 0.272 4 5981585 KSEM2400FEGM 24,00 0.945 1,53 0.060 0.27 0.272 4 5981586 KSEM2500FEGM 25,00 0.984 1,62 0.064 0.30 0.295 5 5981588 KSEM2550FEGM 25,50 1.004 1,63 0.064 0.30 0.295 5 5981591 KSEM2600FEGM 26,00 1.024 1,64 0.065 0.30 0.295 5 5981592 KSEM2650FEGM 26,50 1.043 1,72 0.068 0.32 0.319 6 5981593 KSEM2700FEGM 27,00 1.063 1,73 0.068 0.32 0.319 6 5981594 KSEM2800FEGM 28,00 1.102 1,75 0.069 0.32 0.319 6 5949383 KSEM2900FEGM 29,00 1.142 1,84 0.072 0.34 0.343 7 5981597 KSEM2950FEGM 29,50 1.161 1,85 0.073 0.34 0.343 7 5981598 KSEM3000FEGM 30,00 1.181 1,85 0.073 0.34 0.343 7 5981599 KSEM3100FEGM 31,00 1.221 1,94 0.076 0.37 0.366 8 5981600 KSEM3200FEGM 32,00 1.260 1,96 0.077 0.37 0.366 8 5981602 FEG • Tolerances HOLEMAKING Tolerance FEG • Metric D1 metric tolerance k7 12,5–18 +0,001/+ 0,019 >18–30 +0,002/+ 0,023 >30–40 +0,002/+ 0,027 D47 kennametal.com
