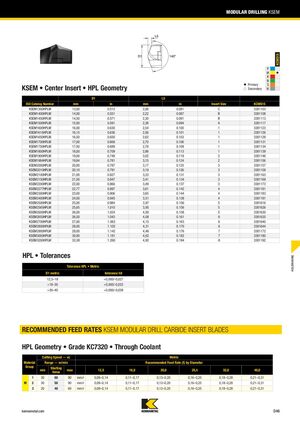

MODULAR DRILLING KSEM KCMS15 P M 䢇 K N 䢇 Primary S KSEM • Center Insert • HPL Geometry 嘷 Secondary H D1 L5 ISO Catalog Number mm in mm in Insert Size KCMS15 KSEM1300HPLM 13,00 0.512 2,06 0.081 C 3381103 KSEM1400HPLM 14,00 0.551 2,22 0.087 B 3381108 KSEM1450HPLM 14,50 0.571 2,30 0.091 B 3381113 KSEM1500HPLM 15,00 0.591 2,38 0.094 A 3381117 KSEM1600HPLM 16,00 0.630 2,54 0.100 1 3381123 KSEM1615HPLM 16,15 0.636 2,56 0.101 1 3381126 KSEM1650HPLM 16,50 0.650 2,62 0.103 1 3381129 KSEM1700HPLM 17,00 0.669 2,70 0.106 1 3381131 KSEM1750HPLM 17,50 0.689 2,78 0.109 1 3381134 KSEM1800HPLM 18,00 0.709 2,86 0.113 1 3381139 KSEM1900HPLM 19,00 0.748 3,02 0.119 2 3381146 KSEM1984HPLM 19,84 0.781 3,15 0.124 2 3381156 KSEM2000HPLM 20,00 0.787 3,17 0.125 3 3381157 KSEM2010HPLM 20,10 0.791 3,19 0.126 3 3381158 KSEM2100HPLM 21,00 0.827 3,33 0.131 3 3381163 KSEM2150HPLM 21,50 0.847 3,41 0.134 3 3381169 KSEM2200HPLM 22,00 0.866 3,49 0.137 3 3381173 KSEM2277HPLM 22,77 0.897 3,61 0.142 4 3381181 KSEM2300HPLM 23,00 0.906 3,65 0.144 4 3381183 KSEM2400HPLM 24,00 0.945 3,51 0.138 4 3381191 KSEM2500HPLM 25,00 0.984 3,97 0.156 5 3381616 KSEM2565HPLM 25,65 1.010 3,95 0.156 5 3381626 KSEM2600HPLM 26,00 1.024 4,00 0.158 5 3381630 KSEM2650HPLM 26,50 1.043 4,08 0.161 6 3381635 KSEM2700HPLM 27,00 1.063 4,15 0.163 6 3381640 KSEM2800HPLM 28,00 1.102 4,31 0.170 6 3381644 KSEM2900HPLM 29,00 1.142 4,46 0.176 7 3381172 KSEM3000HPLM 30,00 1.181 4,62 0.182 7 3381180 KSEM3200HPLM 32,00 1.260 4,92 0.194 8 3381192 HPL • Tolerances HOLEMAKING Tolerance HPL • Metric D1 metric tolerance h8 12,5–18 +0,000/-0,027 >18–30 +0,000/-0,033 >30–40 +0,000/-0,039 RECOMMENDED FEED RATES KSEM MODULAR DRILL CARBIDE INSERT BLADES HPL Geometry • Grade KC7320 • Through Coolant Cutting Speed — vc Metric Material Range — m/min Recommended Feed Rate (f) by Diameter Group Starting min max 12,5 16,0 20,0 25,4 32,0 40,0 Value 1 30 60 90 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 M 2 30 50 90 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 3 20 40 60 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 kennametal.com D46
