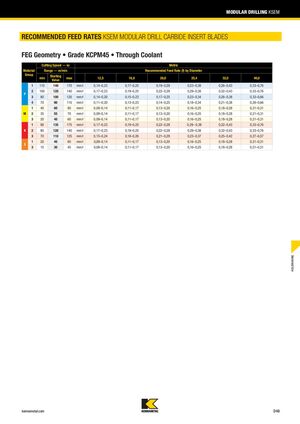

MODULAR DRILLING KSEM RECOMMENDED FEED RATES KSEM MODULAR DRILL CARBIDE INSERT BLADES FEG Geometry • Grade KCPM45 • Through Coolant Cutting Speed — vc Metric Material Range — m/min Recommended Feed Rate (f) by Diameter Group Starting min max 12,5 16,0 20,0 25,4 32,0 40,0 Value 1 110 140 170 mm/r 0,14–0,23 0,17–0,25 0,19–0,29 0,23–0,38 0,26–0,43 0,33–0,76 2 100 120 140 mm/r 0,17–0,23 0,19–0,25 0,22–0,29 0,29–0,38 0,32–0,43 0,33–0,76 P 3 80 100 120 mm/r 0,14–0,20 0,15–0,23 0,17–0,25 0,23–0,34 0,26–0,38 0,33–0,66 4 70 90 110 mm/r 0,11–0,20 0,13–0,23 0,14–0,25 0,18–0,34 0,21–0,38 0,26–0,66 1 40 60 80 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 M 2 35 55 70 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 3 20 40 60 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 1 90 135 175 mm/r 0,17–0,23 0,19–0,25 0,22–0,29 0,29– 0,38 0,32–0,43 0,33–0,76 K 2 80 120 140 mm/r 0,17–0,23 0,19–0,25 0,22–0,29 0,29–0,38 0,32–0,43 0,33–0,76 3 70 110 125 mm/r 0,15–0,24 0,18–0,26 0,21–0,29 0,23–0,37 0,25–0,42 0,27–0,57 1 20 40 60 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 S 3 15 30 45 mm/r 0,09–0,14 0,11–0,17 0,13–0,20 0,16–0,25 0,18–0,28 0,21–0,31 HOLEMAKING kennametal.com D48
