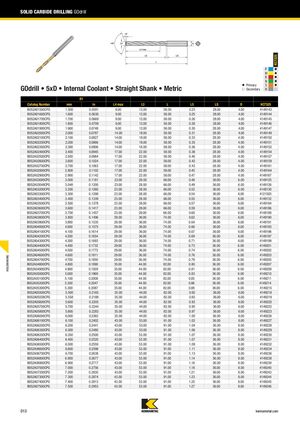

Твёрдосплавное сверление GOdrill
GOdrill • 5xD • Внутреннее охлаждение • Прямой хвостовик • Метрическая система
| Номер каталога | D1 мм |
дюйм | L4 max | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B052A01500CPG | 1.500 | 0.0591 | 9.00 | 12.00 | 58.00 | 0.23 | 28.00 | 4.00 | 4149143 |
| B052A01600CPG | 1.600 | 0.0630 | 9.00 | 12.00 | 58.00 | 0.25 | 28.00 | 4.00 | 4149144 |
| B052A01700CPG | 1.700 | 0.0669 | 9.00 | 12.00 | 58.00 | 0.26 | 28.00 | 4.00 | 4149145 |
| B052A01800CPG | 1.800 | 0.0709 | 9.00 | 12.00 | 58.00 | 0.28 | 28.00 | 4.00 | 4149146 |
| B052A01900CPG | 1.900 | 0.0748 | 9.00 | 12.00 | 58.00 | 0.30 | 28.00 | 4.00 | 4149147 |
| B052A02000CPG | 2.000 | 0.0787 | 14.00 | 18.00 | 58.00 | 0.31 | 28.00 | 4.00 | 4149149 |
| B052A02100CPG | 2.100 | 0.0827 | 14.00 | 18.00 | 58.00 | 0.33 | 28.00 | 4.00 | 4149150 |
| B052A02200CPG | 2.200 | 0.0866 | 14.00 | 18.00 | 58.00 | 0.35 | 28.00 | 4.00 | 4149151 |
| B052A02300CPG | 2.300 | 0.0906 | 14.00 | 18.00 | 58.00 | 0.36 | 28.00 | 4.00 | 4149152 |
| B052A02400CPG | 2.400 | 0.0945 | 17.00 | 22.00 | 58.00 | 0.38 | 28.00 | 4.00 | 4149154 |
| B052A02500CPG | 2.500 | 0.0984 | 17.00 | 22.00 | 58.00 | 0.40 | 28.00 | 4.00 | 4149157 |
| B052A02600CPG | 2.600 | 0.1024 | 17.00 | 22.00 | 58.00 | 0.42 | 28.00 | 4.00 | 4149159 |
| B052A02700CPG | 2.700 | 0.1063 | 17.00 | 22.00 | 58.00 | 0.43 | 28.00 | 4.00 | 4149161 |
| B052A02800CPG | 2.800 | 0.1102 | 17.00 | 22.00 | 58.00 | 0.45 | 28.00 | 4.00 | 4149164 |
| B052A02900CPG | 2.900 | 0.1142 | 17.00 | 22.00 | 58.00 | 0.47 | 28.00 | 4.00 | 4149167 |
| B052A03000CPG | 3.000 | 0.1181 | 23.00 | 28.00 | 66.00 | 0.48 | 36.00 | 6.00 | 4149125 |
| B052A03048CPG | 3.048 | 0.1200 | 23.00 | 28.00 | 66.00 | 0.49 | 36.00 | 6.00 | 4149126 |
| B052A03200CPG | 3.200 | 0.1260 | 23.00 | 28.00 | 66.00 | 0.52 | 36.00 | 6.00 | 4149130 |
| B052A03300CPG | 3.300 | 0.1299 | 23.00 | 28.00 | 66.00 | 0.54 | 36.00 | 6.00 | 4121505 |
| B052A03400CPG | 3.400 | 0.1339 | 23.00 | 28.00 | 66.00 | 0.55 | 36.00 | 6.00 | 4149132 |
| B052A03500CPG | 3.500 | 0.1378 | 23.00 | 28.00 | 66.00 | 0.57 | 36.00 | 6.00 | 4149184 |
| B052A03600CPG | 3.600 | 0.1417 | 23.00 | 28.00 | 66.00 | 0.59 | 36.00 | 6.00 | 4149186 |
| B052A03700CPG | 3.700 | 0.1457 | 23.00 | 28.00 | 66.00 | 0.60 | 36.00 | 6.00 | 4149188 |
| B052A03800CPG | 3.800 | 0.1496 | 29.00 | 36.00 | 74.00 | 0.62 | 36.00 | 6.00 | 4149190 |
| B052A03900CPG | 3.900 | 0.1535 | 29.00 | 36.00 | 74.00 | 0.64 | 36.00 | 6.00 | 4149191 |
| B052A04000CPG | 4.000 | 0.1575 | 29.00 | 36.00 | 74.00 | 0.66 | 36.00 | 6.00 | 4149193 |
| B052A04100CPG | 4.100 | 0.1614 | 29.00 | 36.00 | 74.00 | 0.67 | 36.00 | 6.00 | 4149196 |
| B052A04200CPG | 4.200 | 0.1654 | 29.00 | 36.00 | 74.00 | 0.69 | 36.00 | 6.00 | 4149197 |
| B052A04300CPG | 4.300 | 0.1693 | 29.00 | 36.00 | 74.00 | 0.71 | 36.00 | 6.00 | 4149199 |
| B052A04400CPG | 4.400 | 0.1732 | 29.00 | 36.00 | 74.00 | 0.73 | 36.00 | 6.00 | 4149201 |
| B052A04500CPG | 4.500 | 0.1772 | 29.00 | 36.00 | 74.00 | 0.74 | 36.00 | 6.00 | 4149202 |
| B052A04600CPG | 4.600 | 0.1811 | 29.00 | 36.00 | 74.00 | 0.76 | 36.00 | 6.00 | 4149203 |
| B052A04700CPG | 4.700 | 0.1850 | 29.00 | 36.00 | 74.00 | 0.78 | 36.00 | 6.00 | 4149205 |
| B052A04800CPG | 4.800 | 0.1890 | 35.00 | 44.00 | 82.00 | 0.80 | 36.00 | 6.00 | 4149207 |
| B052A04900CPG | 4.900 | 0.1929 | 35.00 | 44.00 | 82.00 | 0.81 | 36.00 | 6.00 | 4149209 |
| B052A05000CPG | 5.000 | 0.1969 | 35.00 | 44.00 | 82.00 | 0.83 | 36.00 | 6.00 | 4149210 |
| B052A05100CPG | 5.100 | 0.2008 | 35.00 | 44.00 | 82.00 | 0.85 | 36.00 | 6.00 | 4149211 |
| B052A05200CPG | 5.200 | 0.2047 | 35.00 | 44.00 | 82.00 | 0.86 | 36.00 | 6.00 | 4149214 |
| B052A05300CPG | 5.300 | 0.2087 | 35.00 | 44.00 | 82.00 | 0.88 | 36.00 | 6.00 | 4149215 |
| B052A05500CPG | 5.500 | 0.2165 | 35.00 | 44.00 | 82.00 | 0.92 | 36.00 | 6.00 | 4149218 |
| B052A05558CPG | 5.558 | 0.2188 | 35.00 | 44.00 | 82.00 | 0.93 | 36.00 | 6.00 | 4149219 |
| B052A05600CPG | 5.600 | 0.2205 | 35.00 | 44.00 | 82.00 | 0.93 | 36.00 | 6.00 | 4149220 |
| B052A05700CPG | 5.700 | 0.2244 | 35.00 | 44.00 | 82.00 | 0.95 | 36.00 | 6.00 | 4149222 |
| B052A05800CPG | 5.800 | 0.2283 | 35.00 | 44.00 | 82.00 | 0.97 | 36.00 | 6.00 | 4149223 |
| B052A06000CPG | 6.000 | 0.2362 | 35.00 | 44.00 | 82.00 | 1.00 | 36.00 | 6.00 | 4149226 |
| B052A06100CPG | 6.100 | 0.2402 | 43.00 | 53.00 | 91.00 | 1.02 | 36.00 | 8.00 | 4149227 |
| B052A06200CPG | 6.200 | 0.2441 | 43.00 | 53.00 | 91.00 | 1.04 | 36.00 | 8.00 | 4149228 |
| B052A06300CPG | 6.300 | 0.2480 | 43.00 | 53.00 | 91.00 | 1.06 | 36.00 | 8.00 | 4149229 |
| B052A06350CPG | 6.350 | 0.2500 | 43.00 | 53.00 | 91.00 | 1.07 | 36.00 | 8.00 | 4149230 |
| B052A06400CPG | 6.400 | 0.2520 | 43.00 | 53.00 | 91.00 | 1.07 | 36.00 | 8.00 | 4149231 |
| B052A06500CPG | 6.500 | 0.2559 | 43.00 | 53.00 | 91.00 | 1.09 | 36.00 | 8.00 | 4149232 |
| B052A06600CPG | 6.600 | 0.2598 | 43.00 | 53.00 | 91.00 | 1.11 | 36.00 | 8.00 | 4149234 |
| B052A06700CPG | 6.700 | 0.2638 | 43.00 | 53.00 | 91.00 | 1.13 | 36.00 | 8.00 | 4149236 |
| B052A06800CPG | 6.800 | 0.2677 | 43.00 | 53.00 | 91.00 | 1.14 | 36.00 | 8.00 | 4149238 |
| B052A06900CPG | 6.900 | 0.2717 | 43.00 | 53.00 | 91.00 | 1.16 | 36.00 | 8.00 | 4149239 |
| B052A07000CPG | 7.000 | 0.2756 | 43.00 | 53.00 | 91.00 | 1.18 | 36.00 | 8.00 | 4149240 |
| B052A07200CPG | 7.200 | 0.2835 | 43.00 | 53.00 | 91.00 | 1.21 | 36.00 | 8.00 | 4149243 |
| B052A07300CPG | 7.300 | 0.2874 | 43.00 | 53.00 | 91.00 | 1.23 | 36.00 | 8.00 | 4149244 |
| B052A07400CPG | 7.400 | 0.2913 | 43.00 | 53.00 | 91.00 | 1.25 | 36.00 | 8.00 | 4149245 |
| B052A07500CPG | 7.500 | 0.2953 | 43.00 | 53.00 | 91.00 | 1.27 | 36.00 | 8.00 | 4149246 |
