Твёрдосплавное сверление GOdrill

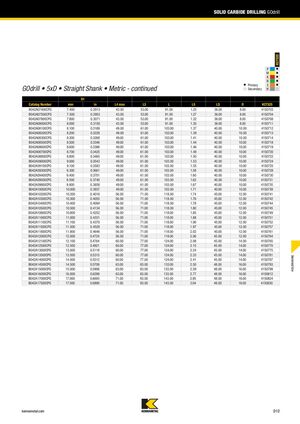

GOdrill • 5xD • Прямой хвостовик • Метрическая система — продолжение
| Номер каталога | D1 мм |
дюйм | L4 max | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B042A07400CPG | 7.400 | 0.2913 | 43.00 | 53.00 | 91.00 | 1.25 | 36.00 | 8.00 | 4150703 |
| B042A07500CPG | 7.500 | 0.2953 | 43.00 | 53.00 | 91.00 | 1.27 | 36.00 | 8.00 | 4150704 |
| B042A07800CPG | 7.800 | 0.3071 | 43.00 | 53.00 | 91.00 | 1.32 | 36.00 | 8.00 | 4150708 |
| B042A08000CPG | 8.000 | 0.3150 | 43.00 | 53.00 | 91.00 | 1.35 | 36.00 | 8.00 | 4150711 |
| B042A08100CPG | 8.100 | 0.3189 | 49.00 | 61.00 | 103.00 | 1.37 | 40.00 | 10.00 | 4150712 |
| B042A08200CPG | 8.200 | 0.3228 | 49.00 | 61.00 | 103.00 | 1.39 | 40.00 | 10.00 | 4150713 |
| B042A08300CPG | 8.300 | 0.3268 | 49.00 | 61.00 | 103.00 | 1.41 | 40.00 | 10.00 | 4150714 |
| B042A08500CPG | 8.500 | 0.3346 | 49.00 | 61.00 | 103.00 | 1.44 | 40.00 | 10.00 | 4150718 |
| B042A08600CPG | 8.600 | 0.3386 | 49.00 | 61.00 | 103.00 | 1.46 | 40.00 | 10.00 | 4150719 |
| B042A08700CPG | 8.700 | 0.3425 | 49.00 | 61.00 | 103.00 | 1.48 | 40.00 | 10.00 | 4150720 |
| B042A08800CPG | 8.800 | 0.3465 | 49.00 | 61.00 | 103.00 | 1.50 | 40.00 | 10.00 | 4150722 |
| B042A09000CPG | 9.000 | 0.3543 | 49.00 | 61.00 | 103.00 | 1.53 | 40.00 | 10.00 | 4150724 |
| B042A09100CPG | 9.100 | 0.3583 | 49.00 | 61.00 | 103.00 | 1.55 | 40.00 | 10.00 | 4150725 |
| B042A09300CPG | 9.300 | 0.3661 | 49.00 | 61.00 | 103.00 | 1.58 | 40.00 | 10.00 | 4150728 |
| B042A09400CPG | 9.400 | 0.3701 | 49.00 | 61.00 | 103.00 | 1.60 | 40.00 | 10.00 | 4150730 |
| B042A09500CPG | 9.500 | 0.3740 | 49.00 | 61.00 | 103.00 | 1.62 | 40.00 | 10.00 | 4150731 |
| B042A09800CPG | 9.800 | 0.3858 | 49.00 | 61.00 | 103.00 | 1.67 | 40.00 | 10.00 | 4150735 |
| B042A10000CPG | 10.000 | 0.3937 | 49.00 | 61.00 | 103.00 | 1.71 | 40.00 | 10.00 | 4150739 |
| B042A10200CPG | 10.200 | 0.4016 | 56.00 | 71.00 | 118.00 | 1.74 | 45.00 | 12.00 | 4150741 |
| B042A10300CPG | 10.300 | 0.4055 | 56.00 | 71.00 | 118.00 | 1.76 | 45.00 | 12.00 | 4150742 |
| B042A10400CPG | 10.400 | 0.4094 | 56.00 | 71.00 | 118.00 | 1.78 | 45.00 | 12.00 | 4150744 |
| B042A10500CPG | 10.500 | 0.4134 | 56.00 | 71.00 | 118.00 | 1.80 | 45.00 | 12.00 | 4150745 |
| B042A10800CPG | 10.800 | 0.4252 | 56.00 | 71.00 | 118.00 | 1.85 | 45.00 | 12.00 | 4150749 |
| B042A11000CPG | 11.000 | 0.4331 | 56.00 | 71.00 | 118.00 | 1.88 | 45.00 | 12.00 | 4150751 |
| B042A11100CPG | 11.100 | 0.4370 | 56.00 | 71.00 | 118.00 | 1.90 | 45.00 | 12.00 | 4150752 |
| B042A11500CPG | 11.500 | 0.4528 | 56.00 | 71.00 | 118.00 | 1.97 | 45.00 | 12.00 | 4150757 |
| B042A11800CPG | 11.800 | 0.4646 | 56.00 | 71.00 | 118.00 | 2.02 | 45.00 | 12.00 | 4150761 |
| B042A12000CPG | 12.000 | 0.4724 | 56.00 | 71.00 | 118.00 | 2.06 | 45.00 | 12.00 | 4150764 |
| B042A12100CPG | 12.100 | 0.4764 | 60.00 | 77.00 | 124.00 | 2.08 | 45.00 | 14.00 | 4150765 |
| B042A12500CPG | 12.500 | 0.4921 | 60.00 | 77.00 | 124.00 | 2.15 | 45.00 | 14.00 | 4150770 |
| B042A13000CPG | 13.000 | 0.5118 | 60.00 | 77.00 | 124.00 | 2.24 | 45.00 | 14.00 | 4150775 |
| B042A13500CPG | 13.500 | 0.5315 | 60.00 | 77.00 | 124.00 | 2.33 | 45.00 | 14.00 | 4150781 |
| B042A14000CPG | 14.000 | 0.5512 | 60.00 | 77.00 | 124.00 | 2.41 | 45.00 | 14.00 | 4150787 |
| B042A14500CPG | 14.500 | 0.5709 | 63.00 | 83.00 | 133.00 | 2.50 | 48.00 | 16.00 | 4150793 |
| B042A15000CPG | 15.000 | 0.5906 | 63.00 | 83.00 | 133.00 | 2.59 | 48.00 | 16.00 | 4150799 |
| B042A16000CPG | 16.000 | 0.6299 | 63.00 | 83.00 | 133.00 | 2.77 | 48.00 | 16.00 | 4150812 |
| B042A17000CPG | 17.000 | 0.6693 | 71.00 | 93.00 | 143.00 | 2.95 | 48.00 | 18.00 | 4150824 |
| B042A17500CPG | 17.500 | 0.6890 | 71.00 | 93.00 | 143.00 | 3.04 | 48.00 | 18.00 | 4150830 |
