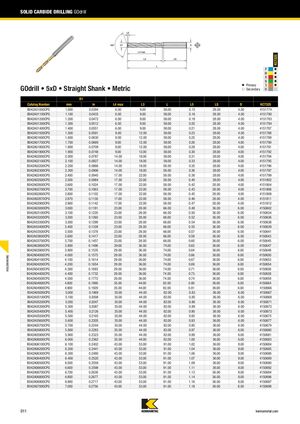

ТВЕРДОСПЛАВНЫЕ СВЕРЛА GOdrill
GOdrill • 5xD • Прямая державка • Метрическая система
| Каталожный номер | D1, мм | D1, дюйм | L4 макс | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B042A01000CPG | 1.000 | 0.0394 | 6.00 | 9.00 | 58.00 | 0.15 | 28.00 | 4.00 | 4151774 |
| B042A01100CPG | 1.100 | 0.0433 | 6.00 | 9.00 | 58.00 | 0.16 | 28.00 | 4.00 | 4151780 |
| B042A01200CPG | 1.200 | 0.0472 | 6.00 | 9.00 | 58.00 | 0.18 | 28.00 | 4.00 | 4151783 |
| B042A01300CPG | 1.300 | 0.0512 | 6.00 | 9.00 | 58.00 | 0.20 | 28.00 | 4.00 | 4151784 |
| B042A01400CPG | 1.400 | 0.0551 | 6.00 | 9.00 | 58.00 | 0.21 | 28.00 | 4.00 | 4151787 |
| B042A01500CPG | 1.500 | 0.0591 | 9.00 | 12.00 | 58.00 | 0.23 | 28.00 | 4.00 | 4151788 |
| B042A01600CPG | 1.600 | 0.0630 | 9.00 | 12.00 | 58.00 | 0.25 | 28.00 | 4.00 | 4151789 |
| B042A01700CPG | 1.700 | 0.0669 | 9.00 | 12.00 | 58.00 | 0.26 | 28.00 | 4.00 | 4151790 |
| B042A01800CPG | 1.800 | 0.0709 | 9.00 | 12.00 | 58.00 | 0.28 | 28.00 | 4.00 | 4151791 |
| B042A01900CPG | 1.900 | 0.0748 | 9.00 | 12.00 | 58.00 | 0.30 | 28.00 | 4.00 | 4151792 |
| B042A02000CPG | 2.000 | 0.0787 | 14.00 | 18.00 | 58.00 | 0.31 | 28.00 | 4.00 | 4151794 |
| B042A02100CPG | 2.100 | 0.0827 | 14.00 | 18.00 | 58.00 | 0.33 | 28.00 | 4.00 | 4151795 |
| B042A02200CPG | 2.200 | 0.0866 | 14.00 | 18.00 | 58.00 | 0.35 | 28.00 | 4.00 | 4151796 |
| B042A02300CPG | 2.300 | 0.0906 | 14.00 | 18.00 | 58.00 | 0.36 | 28.00 | 4.00 | 4151797 |
| B042A02400CPG | 2.400 | 0.0945 | 17.00 | 22.00 | 58.00 | 0.38 | 28.00 | 4.00 | 4151799 |
| B042A02500CPG | 2.500 | 0.0984 | 17.00 | 22.00 | 58.00 | 0.40 | 28.00 | 4.00 | 4151802 |
| B042A02600CPG | 2.600 | 0.1024 | 17.00 | 22.00 | 58.00 | 0.42 | 28.00 | 4.00 | 4151804 |
| B042A02700CPG | 2.700 | 0.1063 | 17.00 | 22.00 | 58.00 | 0.43 | 28.00 | 4.00 | 4151806 |
| B042A02800CPG | 2.800 | 0.1102 | 17.00 | 22.00 | 58.00 | 0.45 | 28.00 | 4.00 | 4151809 |
| B042A02870CPG | 2.870 | 0.1130 | 17.00 | 22.00 | 58.00 | 0.46 | 28.00 | 4.00 | 4151811 |
| B042A02900CPG | 2.900 | 0.1142 | 17.00 | 22.00 | 58.00 | 0.47 | 28.00 | 4.00 | 4151812 |
| B042A03000CPG | 3.000 | 0.1181 | 23.00 | 28.00 | 66.00 | 0.48 | 36.00 | 6.00 | 4150602 |
| B042A03100CPG | 3.100 | 0.1220 | 23.00 | 28.00 | 66.00 | 0.50 | 36.00 | 6.00 | 4150634 |
| B042A03200CPG | 3.200 | 0.1260 | 23.00 | 28.00 | 66.00 | 0.52 | 36.00 | 6.00 | 4150636 |
| B042A03300CPG | 3.300 | 0.1299 | 23.00 | 28.00 | 66.00 | 0.54 | 36.00 | 6.00 | 4150638 |
| B042A03400CPG | 3.400 | 0.1339 | 23.00 | 28.00 | 66.00 | 0.55 | 36.00 | 6.00 | 4150639 |
| B042A03500CPG | 3.500 | 0.1378 | 23.00 | 28.00 | 66.00 | 0.57 | 36.00 | 6.00 | 4150641 |
| B042A03600CPG | 3.600 | 0.1417 | 23.00 | 28.00 | 66.00 | 0.59 | 36.00 | 6.00 | 4150643 |
| B042A03700CPG | 3.700 | 0.1457 | 23.00 | 28.00 | 66.00 | 0.60 | 36.00 | 6.00 | 4150645 |
| B042A03800CPG | 3.800 | 0.1496 | 29.00 | 36.00 | 74.00 | 0.62 | 36.00 | 6.00 | 4150647 |
| B042A03900CPG | 3.900 | 0.1535 | 29.00 | 36.00 | 74.00 | 0.64 | 36.00 | 6.00 | 4150648 |
| B042A04000CPG | 4.000 | 0.1575 | 29.00 | 36.00 | 74.00 | 0.66 | 36.00 | 6.00 | 4150650 |
| B042A04100CPG | 4.100 | 0.1614 | 29.00 | 36.00 | 74.00 | 0.67 | 36.00 | 6.00 | 4150653 |
| B042A04200CPG | 4.200 | 0.1654 | 29.00 | 36.00 | 74.00 | 0.69 | 36.00 | 6.00 | 4150654 |
| B042A04300CPG | 4.300 | 0.1693 | 29.00 | 36.00 | 74.00 | 0.71 | 36.00 | 6.00 | 4150656 |
| B042A04400CPG | 4.400 | 0.1732 | 29.00 | 36.00 | 74.00 | 0.73 | 36.00 | 6.00 | 4150658 |
| B042A04500CPG | 4.500 | 0.1772 | 29.00 | 36.00 | 74.00 | 0.74 | 36.00 | 6.00 | 4150659 |
| B042A04800CPG | 4.800 | 0.1890 | 35.00 | 44.00 | 82.00 | 0.80 | 36.00 | 6.00 | 4150664 |
| B042A04900CPG | 4.900 | 0.1929 | 35.00 | 44.00 | 82.00 | 0.81 | 36.00 | 6.00 | 4150666 |
| B042A05000CPG | 5.000 | 0.1969 | 35.00 | 44.00 | 82.00 | 0.83 | 36.00 | 6.00 | 4150667 |
| B042A05100CPG | 5.100 | 0.2008 | 35.00 | 44.00 | 82.00 | 0.85 | 36.00 | 6.00 | 4150668 |
| B042A05200CPG | 5.200 | 0.2047 | 35.00 | 44.00 | 82.00 | 0.86 | 36.00 | 6.00 | 4150671 |
| B042A05300CPG | 5.300 | 0.2087 | 35.00 | 44.00 | 82.00 | 0.88 | 36.00 | 6.00 | 4150672 |
| B042A05400CPG | 5.400 | 0.2126 | 35.00 | 44.00 | 82.00 | 0.90 | 36.00 | 6.00 | 4150673 |
| B042A05500CPG | 5.500 | 0.2165 | 35.00 | 44.00 | 82.00 | 0.92 | 36.00 | 6.00 | 4150675 |
| B042A05600CPG | 5.600 | 0.2205 | 35.00 | 44.00 | 82.00 | 0.93 | 36.00 | 6.00 | 4150677 |
| B042A05700CPG | 5.700 | 0.2244 | 35.00 | 44.00 | 82.00 | 0.95 | 36.00 | 6.00 | 4150679 |
| B042A05800CPG | 5.800 | 0.2283 | 35.00 | 44.00 | 82.00 | 0.97 | 36.00 | 6.00 | 4150680 |
| B042A05900CPG | 5.900 | 0.2323 | 35.00 | 44.00 | 82.00 | 0.99 | 36.00 | 6.00 | 4150681 |
| B042A06000CPG | 6.000 | 0.2362 | 35.00 | 44.00 | 82.00 | 1.00 | 36.00 | 6.00 | 4150683 |
| B042A06100CPG | 6.100 | 0.2402 | 43.00 | 53.00 | 91.00 | 1.02 | 36.00 | 8.00 | 4150684 |
| B042A06200CPG | 6.200 | 0.2441 | 43.00 | 53.00 | 91.00 | 1.04 | 36.00 | 8.00 | 4150685 |
| B042A06300CPG | 6.300 | 0.2480 | 43.00 | 53.00 | 91.00 | 1.06 | 36.00 | 8.00 | 4150686 |
| B042A06400CPG | 6.400 | 0.2520 | 43.00 | 53.00 | 91.00 | 1.07 | 36.00 | 8.00 | 4150689 |
| B042A06500CPG | 6.500 | 0.2559 | 43.00 | 53.00 | 91.00 | 1.09 | 36.00 | 8.00 | 4150690 |
| B042A06600CPG | 6.600 | 0.2598 | 43.00 | 53.00 | 91.00 | 1.11 | 36.00 | 8.00 | 4150692 |
| B042A06700CPG | 6.700 | 0.2638 | 43.00 | 53.00 | 91.00 | 1.13 | 36.00 | 8.00 | 4150694 |
| B042A06800CPG | 6.800 | 0.2677 | 43.00 | 53.00 | 91.00 | 1.14 | 36.00 | 8.00 | 4150696 |
| B042A06900CPG | 6.900 | 0.2717 | 43.00 | 53.00 | 91.00 | 1.16 | 36.00 | 8.00 | 4150697 |
| B042A07000CPG | 7.000 | 0.2756 | 43.00 | 53.00 | 91.00 | 1.18 | 36.00 | 8.00 | 4150698 |
