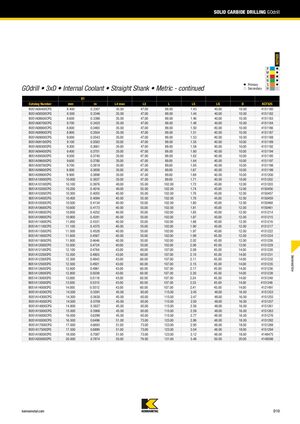

Сверла из твёрдого сплава GOdrill
GOdrill • 3xD • Внутреннее охлаждение • Со стержнем • Метрическое - продолжение
| Номер по каталогу | D1, мм | D1, дюйм | L4 макс. | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B051A08400CPG | 8.400 | 0.3307 | 35.00 | 47.00 | 89.00 | 1.43 | 40.00 | 10.00 | 4151180 |
| B051A08500CPG | 8.500 | 0.3346 | 35.00 | 47.00 | 89.00 | 1.44 | 40.00 | 10.00 | 4151182 |
| B051A08600CPG | 8.600 | 0.3386 | 35.00 | 47.00 | 89.00 | 1.46 | 40.00 | 10.00 | 4151183 |
| B051A08700CPG | 8.700 | 0.3425 | 35.00 | 47.00 | 89.00 | 1.48 | 40.00 | 10.00 | 4151184 |
| B051A08800CPG | 8.800 | 0.3465 | 35.00 | 47.00 | 89.00 | 1.50 | 40.00 | 10.00 | 4151186 |
| B051A08900CPG | 8.900 | 0.3504 | 35.00 | 47.00 | 89.00 | 1.51 | 40.00 | 10.00 | 4151187 |
| B051A09000CPG | 9.000 | 0.3543 | 35.00 | 47.00 | 89.00 | 1.53 | 40.00 | 10.00 | 4151188 |
| B051A09100CPG | 9.100 | 0.3583 | 35.00 | 47.00 | 89.00 | 1.55 | 40.00 | 10.00 | 4151189 |
| B051A09300CPG | 9.300 | 0.3661 | 35.00 | 47.00 | 89.00 | 1.58 | 40.00 | 10.00 | 4151192 |
| B051A09400CPG | 9.400 | 0.3701 | 35.00 | 47.00 | 89.00 | 1.60 | 40.00 | 10.00 | 4151194 |
| B051A09500CPG | 9.500 | 0.3740 | 35.00 | 47.00 | 89.00 | 1.62 | 40.00 | 10.00 | 4151195 |
| B051A09600CPG | 9.600 | 0.3780 | 35.00 | 47.00 | 89.00 | 1.64 | 40.00 | 10.00 | 4151197 |
| B051A09700CPG | 9.700 | 0.3819 | 35.00 | 47.00 | 89.00 | 1.65 | 40.00 | 10.00 | 4151198 |
| B051A09800CPG | 9.800 | 0.3858 | 35.00 | 47.00 | 89.00 | 1.67 | 40.00 | 10.00 | 4151199 |
| B051A09900CPG | 9.900 | 0.3898 | 35.00 | 47.00 | 89.00 | 1.69 | 40.00 | 10.00 | 4151200 |
| B051A10000CPG | 10.000 | 0.3937 | 35.00 | 47.00 | 89.00 | 1.71 | 40.00 | 10.00 | 4151202 |
| B051A10100CPG | 10.100 | 0.3976 | 40.00 | 55.00 | 102.00 | 1.72 | 45.00 | 12.00 | 4151203 |
| B051A10200CPG | 10.200 | 0.4016 | 40.00 | 55.00 | 102.00 | 1.74 | 45.00 | 12.00 | 4150456 |
| B051A10300CPG | 10.300 | 0.4055 | 40.00 | 55.00 | 102.00 | 1.76 | 45.00 | 12.00 | 4150457 |
| B051A10400CPG | 10.400 | 0.4094 | 40.00 | 55.00 | 102.00 | 1.78 | 45.00 | 12.00 | 4150459 |
| B051A10500CPG | 10.500 | 0.4134 | 40.00 | 55.00 | 102.00 | 1.80 | 45.00 | 12.00 | 4150460 |
| B051A10600CPG | 10.600 | 0.4173 | 40.00 | 55.00 | 102.00 | 1.81 | 45.00 | 12.00 | 4150461 |
| B051A10800CPG | 10.800 | 0.4252 | 40.00 | 55.00 | 102.00 | 1.85 | 45.00 | 12.00 | 4151214 |
| B051A10900CPG | 10.900 | 0.4291 | 40.00 | 55.00 | 102.00 | 1.87 | 45.00 | 12.00 | 4151215 |
| B051A11000CPG | 11.000 | 0.4331 | 40.00 | 55.00 | 102.00 | 1.88 | 45.00 | 12.00 | 4151216 |
| B051A11100CPG | 11.100 | 0.4370 | 40.00 | 55.00 | 102.00 | 1.90 | 45.00 | 12.00 | 4151217 |
| B051A11500CPG | 11.500 | 0.4528 | 40.00 | 55.00 | 102.00 | 1.97 | 45.00 | 12.00 | 4151222 |
| B051A11600CPG | 11.600 | 0.4567 | 40.00 | 55.00 | 102.00 | 1.99 | 45.00 | 12.00 | 4151224 |
| B051A11800CPG | 11.800 | 0.4646 | 40.00 | 55.00 | 102.00 | 2.02 | 45.00 | 12.00 | 4151226 |
| B051A12000CPG | 12.000 | 0.4724 | 40.00 | 55.00 | 102.00 | 2.06 | 45.00 | 12.00 | 4151229 |
| B051A12100CPG | 12.100 | 0.4764 | 43.00 | 60.00 | 107.00 | 2.08 | 45.00 | 14.00 | 4151230 |
| B051A12200CPG | 12.200 | 0.4803 | 43.00 | 60.00 | 107.00 | 2.10 | 45.00 | 14.00 | 4151231 |
| B051A12300CPG | 12.300 | 0.4843 | 43.00 | 60.00 | 107.00 | 2.11 | 45.00 | 14.00 | 4151232 |
| B051A12500CPG | 12.500 | 0.4921 | 43.00 | 60.00 | 107.00 | 2.15 | 45.00 | 14.00 | 4151235 |
| B051A12600CPG | 12.600 | 0.4961 | 43.00 | 60.00 | 107.00 | 2.17 | 45.00 | 14.00 | 4151236 |
| B051A12800CPG | 12.800 | 0.5039 | 43.00 | 60.00 | 107.00 | 2.20 | 45.00 | 14.00 | 4151238 |
| B051A13000CPG | 13.000 | 0.5118 | 43.00 | 60.00 | 107.00 | 2.24 | 45.00 | 14.00 | 4151240 |
| B051A13500CPG | 13.500 | 0.5315 | 43.00 | 60.00 | 107.00 | 2.33 | 45.00 | 14.00 | 4151246 |
| B051A14000CPG | 14.000 | 0.5512 | 43.00 | 60.00 | 107.00 | 2.41 | 45.00 | 14.00 | 4121491 |
| B051A14200CPG | 14.200 | 0.5591 | 45.00 | 65.00 | 115.00 | 2.45 | 48.00 | 16.00 | 4151253 |
| B051A14300CPG | 14.300 | 0.5630 | 45.00 | 65.00 | 115.00 | 2.47 | 48.00 | 16.00 | 4151255 |
| B051A14500CPG | 14.500 | 0.5709 | 45.00 | 65.00 | 115.00 | 2.50 | 48.00 | 16.00 | 4151257 |
| B051A14800CPG | 14.800 | 0.5827 | 45.00 | 65.00 | 115.00 | 2.56 | 48.00 | 16.00 | 4151261 |
| B051A15000CPG | 15.000 | 0.5906 | 45.00 | 65.00 | 115.00 | 2.59 | 48.00 | 16.00 | 4151263 |
| B051A16000CPG | 16.000 | 0.6299 | 45.00 | 65.00 | 115.00 | 2.77 | 48.00 | 16.00 | 4151276 |
| B051A16500CPG | 16.500 | 0.6496 | 51.00 | 73.00 | 123.00 | 2.86 | 48.00 | 18.00 | 4151282 |
| B051A17000CPG | 17.000 | 0.6693 | 51.00 | 73.00 | 123.00 | 2.95 | 48.00 | 18.00 | 4151288 |
| B051A17500CPG | 17.500 | 0.6890 | 51.00 | 73.00 | 123.00 | 3.04 | 48.00 | 18.00 | 4151294 |
| B051A18000CPG | 18.000 | 0.7087 | 51.00 | 73.00 | 123.00 | 3.12 | 48.00 | 18.00 | 4148475 |
| B051A20000CPG | 20.000 | 0.7874 | 55.00 | 79.00 | 131.00 | 3.48 | 50.00 | 20.00 | 4148598 |
