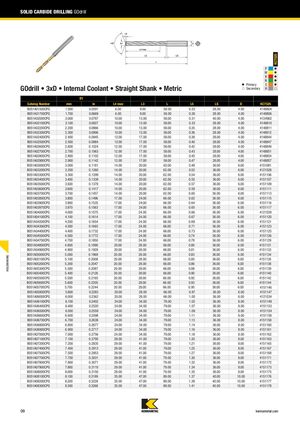

Сверла из твёрдого сплава GOdrill
GOdrill • 3xD • Внутреннее охлаждение • Со стержнем • Метрическое
| Номер по каталогу | D1, мм | D1, дюйм | L4 макс. | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B051A01500CPG | 1.500 | 0.0591 | 6.00 | 9.00 | 58.00 | 0.23 | 28.00 | 4.00 | 4148804 |
| B051A01700CPG | 1.700 | 0.0669 | 6.00 | 9.00 | 58.00 | 0.26 | 28.00 | 4.00 | 4148806 |
| B051A02000CPG | 2.000 | 0.0787 | 10.00 | 13.00 | 58.00 | 0.31 | 40.00 | 4.00 | 4124962 |
| B051A02100CPG | 2.100 | 0.0827 | 10.00 | 13.00 | 58.00 | 0.33 | 28.00 | 4.00 | 4148810 |
| B051A02200CPG | 2.200 | 0.0866 | 10.00 | 13.00 | 58.00 | 0.35 | 28.00 | 4.00 | 4148811 |
| B051A02300CPG | 2.300 | 0.0906 | 10.00 | 13.00 | 58.00 | 0.36 | 28.00 | 4.00 | 4148812 |
| B051A02400CPG | 2.400 | 0.0945 | 12.00 | 17.00 | 58.00 | 0.38 | 28.00 | 4.00 | 4148844 |
| B051A02500CPG | 2.500 | 0.0984 | 12.00 | 17.00 | 58.00 | 0.40 | 28.00 | 4.00 | 4148847 |
| B051A02600CPG | 2.600 | 0.1024 | 12.00 | 17.00 | 58.00 | 0.42 | 28.00 | 4.00 | 4148849 |
| B051A02700CPG | 2.700 | 0.1063 | 12.00 | 17.00 | 58.00 | 0.43 | 28.00 | 4.00 | 4148851 |
| B051A02800CPG | 2.800 | 0.1102 | 12.00 | 17.00 | 58.00 | 0.45 | 28.00 | 4.00 | 4148854 |
| B051A02900CPG | 2.900 | 0.1142 | 12.00 | 17.00 | 58.00 | 0.47 | 28.00 | 4.00 | 4148857 |
| B051A03000CPG | 3.000 | 0.1181 | 14.00 | 20.00 | 62.00 | 0.48 | 36.00 | 6.00 | 4151081 |
| B051A03200CPG | 3.200 | 0.1260 | 14.00 | 20.00 | 62.00 | 0.52 | 36.00 | 6.00 | 4121528 |
| B051A03300CPG | 3.300 | 0.1299 | 14.00 | 20.00 | 62.00 | 0.54 | 36.00 | 6.00 | 4151106 |
| B051A03400CPG | 3.400 | 0.1339 | 14.00 | 20.00 | 62.00 | 0.55 | 36.00 | 6.00 | 4151107 |
| B051A03500CPG | 3.500 | 0.1378 | 14.00 | 20.00 | 62.00 | 0.57 | 36.00 | 6.00 | 4151109 |
| B051A03600CPG | 3.600 | 0.1417 | 14.00 | 20.00 | 62.00 | 0.59 | 36.00 | 6.00 | 4151111 |
| B051A03700CPG | 3.700 | 0.1457 | 14.00 | 20.00 | 62.00 | 0.60 | 36.00 | 6.00 | 4151113 |
| B051A03800CPG | 3.800 | 0.1496 | 17.00 | 24.00 | 66.00 | 0.62 | 36.00 | 6.00 | 4151115 |
| B051A03900CPG | 3.900 | 0.1535 | 17.00 | 24.00 | 66.00 | 0.64 | 36.00 | 6.00 | 4151116 |
| B051A03970CPG | 3.970 | 0.1563 | 17.00 | 24.00 | 66.00 | 0.65 | 36.00 | 6.00 | 4151117 |
| B051A04000CPG | 4.000 | 0.1575 | 17.00 | 24.00 | 66.00 | 0.66 | 36.00 | 6.00 | 4121529 |
| B051A04100CPG | 4.100 | 0.1614 | 17.00 | 24.00 | 66.00 | 0.67 | 36.00 | 6.00 | 4151120 |
| B051A04200CPG | 4.200 | 0.1654 | 17.00 | 24.00 | 66.00 | 0.69 | 36.00 | 6.00 | 4151121 |
| B051A04300CPG | 4.300 | 0.1693 | 17.00 | 24.00 | 66.00 | 0.71 | 36.00 | 6.00 | 4151123 |
| B051A04400CPG | 4.400 | 0.1732 | 17.00 | 24.00 | 66.00 | 0.73 | 36.00 | 6.00 | 4151125 |
| B051A04500CPG | 4.500 | 0.1772 | 17.00 | 24.00 | 66.00 | 0.74 | 36.00 | 6.00 | 4151126 |
| B051A04700CPG | 4.700 | 0.1850 | 17.00 | 24.00 | 66.00 | 0.78 | 36.00 | 6.00 | 4151129 |
| B051A04800CPG | 4.800 | 0.1890 | 20.00 | 28.00 | 66.00 | 0.80 | 36.00 | 6.00 | 4151131 |
| B051A04900CPG | 4.900 | 0.1929 | 20.00 | 28.00 | 66.00 | 0.81 | 36.00 | 6.00 | 4151133 |
| B051A05000CPG | 5.000 | 0.1969 | 20.00 | 28.00 | 66.00 | 0.83 | 36.00 | 6.00 | 4151134 |
| B051A05100CPG | 5.100 | 0.2008 | 20.00 | 28.00 | 66.00 | 0.85 | 36.00 | 6.00 | 4151135 |
| B051A05200CPG | 5.200 | 0.2047 | 20.00 | 28.00 | 66.00 | 0.86 | 36.00 | 6.00 | 4151138 |
| B051A05300CPG | 5.300 | 0.2087 | 20.00 | 28.00 | 66.00 | 0.88 | 36.00 | 6.00 | 4151139 |
| B051A05400CPG | 5.400 | 0.2126 | 20.00 | 28.00 | 66.00 | 0.90 | 36.00 | 6.00 | 4151140 |
| B051A05500CPG | 5.500 | 0.2165 | 20.00 | 28.00 | 66.00 | 0.92 | 36.00 | 6.00 | 4151142 |
| B051A05600CPG | 5.600 | 0.2205 | 20.00 | 28.00 | 66.00 | 0.93 | 36.00 | 6.00 | 4151144 |
| B051A05700CPG | 5.700 | 0.2244 | 20.00 | 28.00 | 66.00 | 0.95 | 36.00 | 6.00 | 4151146 |
| B051A05800CPG | 5.800 | 0.2283 | 20.00 | 28.00 | 66.00 | 0.97 | 36.00 | 6.00 | 4151147 |
| B051A06000CPG | 6.000 | 0.2362 | 20.00 | 28.00 | 66.00 | 1.00 | 36.00 | 6.00 | 4121534 |
| B051A06100CPG | 6.100 | 0.2402 | 24.00 | 34.00 | 79.00 | 1.02 | 36.00 | 8.00 | 4151149 |
| B051A06400CPG | 6.400 | 0.2520 | 24.00 | 34.00 | 79.00 | 1.07 | 36.00 | 8.00 | 4151153 |
| B051A06500CPG | 6.500 | 0.2559 | 24.00 | 34.00 | 79.00 | 1.09 | 36.00 | 8.00 | 4151154 |
| B051A06600CPG | 6.600 | 0.2598 | 24.00 | 34.00 | 79.00 | 1.11 | 36.00 | 8.00 | 4151156 |
| B051A06700CPG | 6.700 | 0.2638 | 24.00 | 34.00 | 79.00 | 1.13 | 36.00 | 8.00 | 4151158 |
| B051A06800CPG | 6.800 | 0.2677 | 24.00 | 34.00 | 79.00 | 1.14 | 36.00 | 8.00 | 4151160 |
| B051A06900CPG | 6.900 | 0.2717 | 24.00 | 34.00 | 79.00 | 1.16 | 36.00 | 8.00 | 4151161 |
| B051A07000CPG | 7.000 | 0.2756 | 24.00 | 34.00 | 79.00 | 1.18 | 36.00 | 8.00 | 4151162 |
| B051A07100CPG | 7.100 | 0.2795 | 29.00 | 41.00 | 79.00 | 1.20 | 36.00 | 8.00 | 4151163 |
| B051A07200CPG | 7.200 | 0.2835 | 29.00 | 41.00 | 79.00 | 1.21 | 36.00 | 8.00 | 4151165 |
| B051A07400CPG | 7.400 | 0.2913 | 29.00 | 41.00 | 79.00 | 1.25 | 36.00 | 8.00 | 4151167 |
| B051A07500CPG | 7.500 | 0.2953 | 29.00 | 41.00 | 79.00 | 1.27 | 36.00 | 8.00 | 4151168 |
| B051A07700CPG | 7.700 | 0.3031 | 29.00 | 41.00 | 79.00 | 1.30 | 36.00 | 8.00 | 4151171 |
| B051A07800CPG | 7.800 | 0.3071 | 29.00 | 41.00 | 79.00 | 1.32 | 36.00 | 8.00 | 4151172 |
| B051A07900CPG | 7.900 | 0.3110 | 29.00 | 41.00 | 79.00 | 1.34 | 36.00 | 8.00 | 4151173 |
| B051A08000CPG | 8.000 | 0.3150 | 29.00 | 41.00 | 79.00 | 1.35 | 36.00 | 8.00 | 4151175 |
| B051A08100CPG | 8.100 | 0.3189 | 35.00 | 47.00 | 89.00 | 1.37 | 40.00 | 10.00 | 4151176 |
| B051A08200CPG | 8.200 | 0.3228 | 35.00 | 47.00 | 89.00 | 1.39 | 40.00 | 10.00 | 4151177 |
| B051A08300CPG | 8.300 | 0.3268 | 35.00 | 47.00 | 89.00 | 1.41 | 40.00 | 10.00 | 4151178 |
