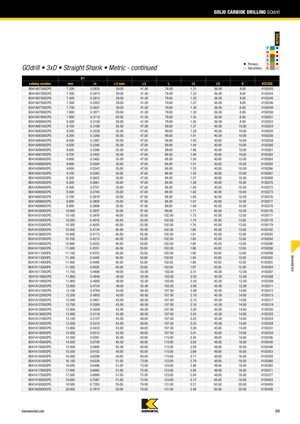

Сверла из твёрдого сплава GOdrill
GOdrill • 3xD • Со стержнем • Метрическое - продолжение
| Номер по каталогу | D1, мм | D1, дюйм | L4 макс. | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B041A07200CPG | 7.200 | 0.2835 | 29.00 | 41.00 | 79.00 | 1.21 | 36.00 | 8.00 | 4150243 |
| B041A07300CPG | 7.300 | 0.2874 | 29.00 | 41.00 | 79.00 | 1.23 | 36.00 | 8.00 | 4150244 |
| B041A07400CPG | 7.400 | 0.2913 | 29.00 | 41.00 | 79.00 | 1.25 | 36.00 | 8.00 | 4150245 |
| B041A07500CPG | 7.500 | 0.2953 | 29.00 | 41.00 | 79.00 | 1.27 | 36.00 | 8.00 | 4150246 |
| B041A07700CPG | 7.700 | 0.3031 | 29.00 | 41.00 | 79.00 | 1.30 | 36.00 | 8.00 | 4150249 |
| B041A07800CPG | 7.800 | 0.3071 | 29.00 | 41.00 | 79.00 | 1.32 | 36.00 | 8.00 | 4150250 |
| B041A07900CPG | 7.900 | 0.3110 | 29.00 | 41.00 | 79.00 | 1.34 | 36.00 | 8.00 | 4150251 |
| B041A08000CPG | 8.000 | 0.3150 | 29.00 | 41.00 | 79.00 | 1.35 | 36.00 | 8.00 | 4150253 |
| B041A08100CPG | 8.100 | 0.3189 | 35.00 | 47.00 | 89.00 | 1.37 | 40.00 | 10.00 | 4150254 |
| B041A08200CPG | 8.200 | 0.3228 | 35.00 | 47.00 | 89.00 | 1.39 | 40.00 | 10.00 | 4150255 |
| B041A08300CPG | 8.300 | 0.3268 | 35.00 | 47.00 | 89.00 | 1.41 | 40.00 | 10.00 | 4150256 |
| B041A08400CPG | 8.400 | 0.3307 | 35.00 | 47.00 | 89.00 | 1.43 | 40.00 | 10.00 | 4150258 |
| B041A08500CPG | 8.500 | 0.3346 | 35.00 | 47.00 | 89.00 | 1.44 | 40.00 | 10.00 | 4150260 |
| B041A08600CPG | 8.600 | 0.3386 | 35.00 | 47.00 | 89.00 | 1.46 | 40.00 | 10.00 | 4150261 |
| B041A08700CPG | 8.700 | 0.3425 | 35.00 | 47.00 | 89.00 | 1.48 | 40.00 | 10.00 | 4150262 |
| B041A08800CPG | 8.800 | 0.3465 | 35.00 | 47.00 | 89.00 | 1.50 | 40.00 | 10.00 | 4150264 |
| B041A08900CPG | 8.900 | 0.3504 | 35.00 | 47.00 | 89.00 | 1.51 | 40.00 | 10.00 | 4150265 |
| B041A09000CPG | 9.000 | 0.3543 | 35.00 | 47.00 | 89.00 | 1.53 | 40.00 | 10.00 | 4150266 |
| B041A09100CPG | 9.100 | 0.3583 | 35.00 | 47.00 | 89.00 | 1.55 | 40.00 | 10.00 | 4150267 |
| B041A09200CPG | 9.200 | 0.3622 | 35.00 | 47.00 | 89.00 | 1.57 | 40.00 | 10.00 | 4150269 |
| B041A09300CPG | 9.300 | 0.3661 | 35.00 | 47.00 | 89.00 | 1.58 | 40.00 | 10.00 | 4150270 |
| B041A09400CPG | 9.400 | 0.3701 | 35.00 | 47.00 | 89.00 | 1.60 | 40.00 | 10.00 | 4150272 |
| B041A09500CPG | 9.500 | 0.3740 | 35.00 | 47.00 | 89.00 | 1.62 | 40.00 | 10.00 | 4150273 |
| B041A09700CPG | 9.700 | 0.3819 | 35.00 | 47.00 | 89.00 | 1.65 | 40.00 | 10.00 | 4150276 |
| B041A09800CPG | 9.800 | 0.3858 | 35.00 | 47.00 | 89.00 | 1.67 | 40.00 | 10.00 | 4150277 |
| B041A09900CPG | 9.900 | 0.3898 | 35.00 | 47.00 | 89.00 | 1.69 | 40.00 | 10.00 | 4150278 |
| B041A10000CPG | 10.000 | 0.3937 | 35.00 | 47.00 | 89.00 | 1.71 | 40.00 | 10.00 | 4150176 |
| B041A10100CPG | 10.100 | 0.3976 | 40.00 | 55.00 | 102.00 | 1.72 | 45.00 | 12.00 | 4150177 |
| B041A10200CPG | 10.200 | 0.4016 | 40.00 | 55.00 | 102.00 | 1.74 | 45.00 | 12.00 | 4150178 |
| B041A10300CPG | 10.300 | 0.4055 | 40.00 | 55.00 | 102.00 | 1.76 | 45.00 | 12.00 | 4150179 |
| B041A10500CPG | 10.500 | 0.4134 | 40.00 | 55.00 | 102.00 | 1.80 | 45.00 | 12.00 | 4150182 |
| B041A10600CPG | 10.600 | 0.4173 | 40.00 | 55.00 | 102.00 | 1.81 | 45.00 | 12.00 | 4150293 |
| B041A10700CPG | 10.700 | 0.4213 | 40.00 | 55.00 | 102.00 | 1.83 | 45.00 | 12.00 | 4150294 |
| B041A10800CPG | 10.800 | 0.4252 | 40.00 | 55.00 | 102.00 | 1.85 | 45.00 | 12.00 | 4150296 |
| B041A11000CPG | 11.000 | 0.4331 | 40.00 | 55.00 | 102.00 | 1.88 | 45.00 | 12.00 | 4150298 |
| B041A11100CPG | 11.100 | 0.4370 | 40.00 | 55.00 | 102.00 | 1.90 | 45.00 | 12.00 | 4150299 |
| B041A11300CPG | 11.300 | 0.4449 | 40.00 | 55.00 | 102.00 | 1.94 | 45.00 | 12.00 | 4150302 |
| B041A11400CPG | 11.400 | 0.4488 | 40.00 | 55.00 | 102.00 | 1.95 | 45.00 | 12.00 | 4150303 |
| B041A11500CPG | 11.500 | 0.4528 | 40.00 | 55.00 | 102.00 | 1.97 | 45.00 | 12.00 | 4150304 |
| B041A11700CPG | 11.700 | 0.4606 | 40.00 | 55.00 | 102.00 | 2.01 | 45.00 | 12.00 | 4150307 |
| B041A11800CPG | 11.800 | 0.4646 | 40.00 | 55.00 | 102.00 | 2.02 | 45.00 | 12.00 | 4150308 |
| B041A11900CPG | 11.900 | 0.4685 | 40.00 | 55.00 | 102.00 | 2.04 | 45.00 | 12.00 | 4150309 |
| B041A12000CPG | 12.000 | 0.4724 | 40.00 | 55.00 | 102.00 | 2.06 | 45.00 | 12.00 | 4150311 |
| B041A12100CPG | 12.100 | 0.4764 | 43.00 | 60.00 | 107.00 | 2.08 | 45.00 | 14.00 | 4150312 |
| B041A12200CPG | 12.200 | 0.4803 | 43.00 | 60.00 | 107.00 | 2.10 | 45.00 | 14.00 | 4150313 |
| B041A12500CPG | 12.500 | 0.4921 | 43.00 | 60.00 | 107.00 | 2.15 | 45.00 | 14.00 | 4150317 |
| B041A12700CPG | 12.700 | 0.5000 | 43.00 | 60.00 | 107.00 | 2.18 | 45.00 | 14.00 | 4150319 |
| B041A12800CPG | 12.800 | 0.5039 | 43.00 | 60.00 | 107.00 | 2.20 | 45.00 | 14.00 | 4150320 |
| B041A13000CPG | 13.000 | 0.5118 | 43.00 | 60.00 | 107.00 | 2.24 | 45.00 | 14.00 | 4150322 |
| B041A13100CPG | 13.100 | 0.5157 | 43.00 | 60.00 | 107.00 | 2.25 | 45.00 | 14.00 | 4150324 |
| B041A13500CPG | 13.500 | 0.5315 | 43.00 | 60.00 | 107.00 | 2.33 | 45.00 | 14.00 | 4150328 |
| B041A13800CPG | 13.800 | 0.5433 | 43.00 | 60.00 | 107.00 | 2.38 | 45.00 | 14.00 | 4150331 |
| B041A14000CPG | 14.000 | 0.5512 | 43.00 | 60.00 | 107.00 | 2.41 | 45.00 | 14.00 | 4150334 |
| B041A14200CPG | 14.200 | 0.5591 | 45.00 | 65.00 | 115.00 | 2.45 | 48.00 | 16.00 | 4150336 |
| B041A14500CPG | 14.500 | 0.5709 | 45.00 | 65.00 | 115.00 | 2.50 | 48.00 | 16.00 | 4150340 |
| B041A15000CPG | 15.000 | 0.5906 | 45.00 | 65.00 | 115.00 | 2.59 | 48.00 | 16.00 | 4150346 |
| B041A15500CPG | 15.500 | 0.6102 | 45.00 | 65.00 | 115.00 | 2.68 | 48.00 | 16.00 | 4150353 |
| B041A16000CPG | 16.000 | 0.6299 | 45.00 | 65.00 | 115.00 | 2.77 | 48.00 | 16.00 | 4150359 |
| B041A16100CPG | 16.100 | 0.6339 | 51.00 | 73.00 | 123.00 | 2.79 | 48.00 | 18.00 | 4150360 |
| B041A16500CPG | 16.500 | 0.6496 | 51.00 | 73.00 | 123.00 | 2.86 | 48.00 | 18.00 | 4150365 |
| B041A17000CPG | 17.000 | 0.6693 | 51.00 | 73.00 | 123.00 | 2.95 | 48.00 | 18.00 | 4150371 |
| B041A17500CPG | 17.500 | 0.6890 | 51.00 | 73.00 | 123.00 | 3.04 | 48.00 | 18.00 | 4150377 |
| B041A18000CPG | 18.000 | 0.7087 | 51.00 | 73.00 | 123.00 | 3.12 | 48.00 | 18.00 | 4150403 |
| B041A18500CPG | 18.500 | 0.7283 | 55.00 | 79.00 | 131.00 | 3.21 | 50.00 | 20.00 | 4150409 |
| B041A20000CPG | 20.000 | 0.7874 | 55.00 | 79.00 | 131.00 | 3.48 | 50.00 | 20.00 | 4150426 |
