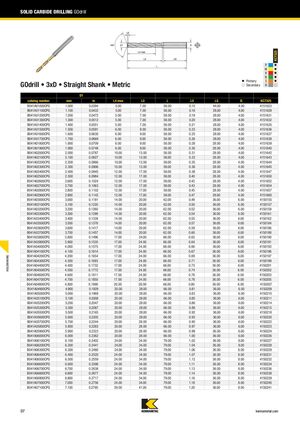

Сверла из твёрдого сплава GOdrill
GOdrill • 3xD • Со стержнем • Метрическое
| Номер по каталогу | D1, мм | D1, дюйм | L4 макс. | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B041A01000CPG | 1.000 | 0.0394 | 5.00 | 7.00 | 58.00 | 0.15 | 44.00 | 4.00 | 4151623 |
| B041A01100CPG | 1.100 | 0.0433 | 5.00 | 7.00 | 58.00 | 0.16 | 28.00 | 4.00 | 4151628 |
| B041A01200CPG | 1.200 | 0.0472 | 5.00 | 7.00 | 58.00 | 0.18 | 28.00 | 4.00 | 4151631 |
| B041A01300CPG | 1.300 | 0.0512 | 5.00 | 7.00 | 58.00 | 0.20 | 28.00 | 4.00 | 4151632 |
| B041A01400CPG | 1.400 | 0.0551 | 5.00 | 7.00 | 58.00 | 0.21 | 28.00 | 4.00 | 4151635 |
| B041A01500CPG | 1.500 | 0.0591 | 6.00 | 9.00 | 58.00 | 0.23 | 28.00 | 4.00 | 4151636 |
| B041A01600CPG | 1.600 | 0.0630 | 6.00 | 9.00 | 58.00 | 0.25 | 28.00 | 4.00 | 4151637 |
| B041A01700CPG | 1.700 | 0.0669 | 6.00 | 9.00 | 58.00 | 0.26 | 28.00 | 4.00 | 4151638 |
| B041A01800CPG | 1.800 | 0.0709 | 6.00 | 9.00 | 58.00 | 0.28 | 28.00 | 4.00 | 4151639 |
| B041A01900CPG | 1.900 | 0.0748 | 6.00 | 9.00 | 58.00 | 0.30 | 28.00 | 4.00 | 4151640 |
| B041A02000CPG | 2.000 | 0.0787 | 10.00 | 13.00 | 58.00 | 0.31 | 28.00 | 4.00 | 4151642 |
| B041A02100CPG | 2.100 | 0.0827 | 10.00 | 13.00 | 58.00 | 0.33 | 28.00 | 4.00 | 4151643 |
| B041A02200CPG | 2.200 | 0.0866 | 10.00 | 13.00 | 58.00 | 0.35 | 28.00 | 4.00 | 4151644 |
| B041A02300CPG | 2.300 | 0.0906 | 10.00 | 13.00 | 58.00 | 0.36 | 28.00 | 4.00 | 4151645 |
| B041A02400CPG | 2.400 | 0.0945 | 12.00 | 17.00 | 58.00 | 0.38 | 28.00 | 4.00 | 4151647 |
| B041A02500CPG | 2.500 | 0.0984 | 12.00 | 17.00 | 58.00 | 0.40 | 28.00 | 4.00 | 4151650 |
| B041A02600CPG | 2.600 | 0.1024 | 12.00 | 17.00 | 58.00 | 0.42 | 28.00 | 4.00 | 4151652 |
| B041A02700CPG | 2.700 | 0.1063 | 12.00 | 17.00 | 58.00 | 0.43 | 28.00 | 4.00 | 4151654 |
| B041A02800CPG | 2.800 | 0.1102 | 12.00 | 17.00 | 58.00 | 0.45 | 28.00 | 4.00 | 4151657 |
| B041A02900CPG | 2.900 | 0.1142 | 12.00 | 17.00 | 58.00 | 0.47 | 28.00 | 4.00 | 4151660 |
| B041A03000CPG | 3.000 | 0.1181 | 14.00 | 20.00 | 62.00 | 0.48 | 36.00 | 6.00 | 4150155 |
| B041A03100CPG | 3.100 | 0.1220 | 14.00 | 20.00 | 62.00 | 0.50 | 36.00 | 6.00 | 4150157 |
| B041A03200CPG | 3.200 | 0.1260 | 14.00 | 20.00 | 62.00 | 0.52 | 36.00 | 6.00 | 4150159 |
| B041A03300CPG | 3.300 | 0.1299 | 14.00 | 20.00 | 62.00 | 0.54 | 36.00 | 6.00 | 4150161 |
| B041A03400CPG | 3.400 | 0.1339 | 14.00 | 20.00 | 62.00 | 0.55 | 36.00 | 6.00 | 4150162 |
| B041A03500CPG | 3.500 | 0.1378 | 14.00 | 20.00 | 62.00 | 0.57 | 36.00 | 6.00 | 4150184 |
| B041A03600CPG | 3.600 | 0.1417 | 14.00 | 20.00 | 62.00 | 0.59 | 36.00 | 6.00 | 4150186 |
| B041A03700CPG | 3.700 | 0.1457 | 14.00 | 20.00 | 62.00 | 0.60 | 36.00 | 6.00 | 4150188 |
| B041A03800CPG | 3.800 | 0.1496 | 17.00 | 24.00 | 66.00 | 0.62 | 36.00 | 6.00 | 4150190 |
| B041A03900CPG | 3.900 | 0.1535 | 17.00 | 24.00 | 66.00 | 0.64 | 36.00 | 6.00 | 4150191 |
| B041A04000CPG | 4.000 | 0.1575 | 17.00 | 24.00 | 66.00 | 0.66 | 36.00 | 6.00 | 4150193 |
| B041A04100CPG | 4.100 | 0.1614 | 17.00 | 24.00 | 66.00 | 0.67 | 36.00 | 6.00 | 4150196 |
| B041A04200CPG | 4.200 | 0.1654 | 17.00 | 24.00 | 66.00 | 0.69 | 36.00 | 6.00 | 4150197 |
| B041A04300CPG | 4.300 | 0.1693 | 17.00 | 24.00 | 66.00 | 0.71 | 36.00 | 6.00 | 4150199 |
| B041A04400CPG | 4.400 | 0.1732 | 17.00 | 24.00 | 66.00 | 0.73 | 36.00 | 6.00 | 4150201 |
| B041A04500CPG | 4.500 | 0.1772 | 17.00 | 24.00 | 66.00 | 0.74 | 36.00 | 6.00 | 4150202 |
| B041A04600CPG | 4.600 | 0.1811 | 17.00 | 24.00 | 66.00 | 0.76 | 36.00 | 6.00 | 4150203 |
| B041A04700CPG | 4.700 | 0.1850 | 17.00 | 24.00 | 66.00 | 0.78 | 36.00 | 6.00 | 4150205 |
| B041A04800CPG | 4.800 | 0.1890 | 20.00 | 28.00 | 66.00 | 0.80 | 36.00 | 6.00 | 4150207 |
| B041A04900CPG | 4.900 | 0.1929 | 20.00 | 28.00 | 66.00 | 0.81 | 36.00 | 6.00 | 4150209 |
| B041A05000CPG | 5.000 | 0.1969 | 20.00 | 28.00 | 66.00 | 0.83 | 36.00 | 6.00 | 4150210 |
| B041A05100CPG | 5.100 | 0.2008 | 20.00 | 28.00 | 66.00 | 0.85 | 36.00 | 6.00 | 4150211 |
| B041A05200CPG | 5.200 | 0.2047 | 20.00 | 28.00 | 66.00 | 0.86 | 36.00 | 6.00 | 4150214 |
| B041A05300CPG | 5.300 | 0.2087 | 20.00 | 28.00 | 66.00 | 0.88 | 36.00 | 6.00 | 4150215 |
| B041A05500CPG | 5.500 | 0.2165 | 20.00 | 28.00 | 66.00 | 0.92 | 36.00 | 6.00 | 4150218 |
| B041A05600CPG | 5.600 | 0.2205 | 20.00 | 28.00 | 66.00 | 0.93 | 36.00 | 6.00 | 4150220 |
| B041A05700CPG | 5.700 | 0.2244 | 20.00 | 28.00 | 66.00 | 0.95 | 36.00 | 6.00 | 4150222 |
| B041A05800CPG | 5.800 | 0.2283 | 20.00 | 28.00 | 66.00 | 0.97 | 36.00 | 6.00 | 4150223 |
| B041A05900CPG | 5.900 | 0.2323 | 20.00 | 28.00 | 66.00 | 0.99 | 36.00 | 6.00 | 4150224 |
| B041A06000CPG | 6.000 | 0.2362 | 20.00 | 28.00 | 66.00 | 1.00 | 36.00 | 6.00 | 4150226 |
| B041A06100CPG | 6.100 | 0.2402 | 24.00 | 34.00 | 79.00 | 1.02 | 36.00 | 8.00 | 4150227 |
| B041A06200CPG | 6.200 | 0.2441 | 24.00 | 34.00 | 79.00 | 1.04 | 36.00 | 8.00 | 4150228 |
| B041A06300CPG | 6.300 | 0.2480 | 24.00 | 34.00 | 79.00 | 1.06 | 36.00 | 8.00 | 4150229 |
| B041A06400CPG | 6.400 | 0.2520 | 24.00 | 34.00 | 79.00 | 1.07 | 36.00 | 8.00 | 4150231 |
| B041A06500CPG | 6.500 | 0.2559 | 24.00 | 34.00 | 79.00 | 1.12 | 36.00 | 8.00 | 4150232 |
| B041A06600CPG | 6.600 | 0.2598 | 24.00 | 34.00 | 79.00 | 1.11 | 36.00 | 8.00 | 4150234 |
| B041A06700CPG | 6.700 | 0.2638 | 24.00 | 34.00 | 79.00 | 1.13 | 36.00 | 8.00 | 4150236 |
| B041A06800CPG | 6.800 | 0.2677 | 24.00 | 34.00 | 79.00 | 1.14 | 36.00 | 8.00 | 4150238 |
| B041A06900CPG | 6.900 | 0.2717 | 24.00 | 34.00 | 79.00 | 1.16 | 36.00 | 8.00 | 4150239 |
| B041A07000CPG | 7.000 | 0.2756 | 24.00 | 34.00 | 79.00 | 1.18 | 36.00 | 8.00 | 4150240 |
| B041A07100CPG | 7.100 | 0.2795 | 29.00 | 41.00 | 79.00 | 1.20 | 36.00 | 8.00 | 4150241 |
