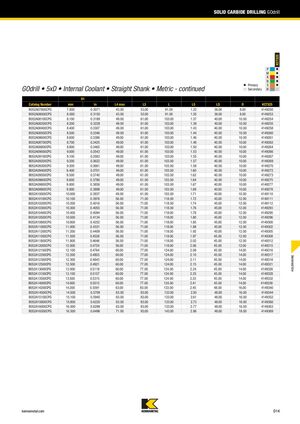

ТВЕРДОСПЛАВНЫЕ СВЕРЛА GOdrill
GOdrill • 5xD • Внутренняя подача СОЖ • Прямая державка • Метрическая система - продолжение
| Каталожный номер | D1, мм | D1, дюйм | L4 макс | L3 | L | L5 | LS | D | KC7325 |
|---|---|---|---|---|---|---|---|---|---|
| B052A07800CPG | 7.800 | 0.3071 | 43.00 | 53.00 | 91.00 | 1.32 | 36.00 | 8.00 | 4149250 |
| B052A08000CPG | 8.000 | 0.3150 | 43.00 | 53.00 | 91.00 | 1.35 | 36.00 | 8.00 | 4149253 |
| B052A08100CPG | 8.100 | 0.3189 | 49.00 | 61.00 | 103.00 | 1.37 | 40.00 | 10.00 | 4149254 |
| B052A08200CPG | 8.200 | 0.3228 | 49.00 | 61.00 | 103.00 | 1.39 | 40.00 | 10.00 | 4149255 |
| B052A08400CPG | 8.400 | 0.3307 | 49.00 | 61.00 | 103.00 | 1.43 | 40.00 | 10.00 | 4149258 |
| B052A08500CPG | 8.500 | 0.3346 | 49.00 | 61.00 | 103.00 | 1.44 | 40.00 | 10.00 | 4149260 |
| B052A08600CPG | 8.600 | 0.3386 | 49.00 | 61.00 | 103.00 | 1.46 | 40.00 | 10.00 | 4149261 |
| B052A08700CPG | 8.700 | 0.3425 | 49.00 | 61.00 | 103.00 | 1.48 | 40.00 | 10.00 | 4149262 |
| B052A08800CPG | 8.800 | 0.3465 | 49.00 | 61.00 | 103.00 | 1.50 | 40.00 | 10.00 | 4149264 |
| B052A09000CPG | 9.000 | 0.3543 | 49.00 | 61.00 | 103.00 | 1.53 | 40.00 | 10.00 | 4149266 |
| B052A09100CPG | 9.100 | 0.3583 | 49.00 | 61.00 | 103.00 | 1.55 | 40.00 | 10.00 | 4149267 |
| B052A09200CPG | 9.200 | 0.3622 | 49.00 | 61.00 | 103.00 | 1.57 | 40.00 | 10.00 | 4149269 |
| B052A09300CPG | 9.300 | 0.3661 | 49.00 | 61.00 | 103.00 | 1.58 | 40.00 | 10.00 | 4149270 |
| B052A09400CPG | 9.400 | 0.3701 | 49.00 | 61.00 | 103.00 | 1.60 | 40.00 | 10.00 | 4149272 |
| B052A09500CPG | 9.500 | 0.3740 | 49.00 | 61.00 | 103.00 | 1.62 | 40.00 | 10.00 | 4149273 |
| B052A09600CPG | 9.600 | 0.3780 | 49.00 | 61.00 | 103.00 | 1.64 | 40.00 | 10.00 | 4149275 |
| B052A09800CPG | 9.800 | 0.3858 | 49.00 | 61.00 | 103.00 | 1.67 | 40.00 | 10.00 | 4149277 |
| B052A09900CPG | 9.900 | 0.3898 | 49.00 | 61.00 | 103.00 | 1.69 | 40.00 | 10.00 | 4149278 |
| B052A10000CPG | 10.000 | 0.3937 | 49.00 | 61.00 | 103.00 | 1.71 | 40.00 | 10.00 | 4149110 |
| B052A10100CPG | 10.100 | 0.3976 | 56.00 | 71.00 | 118.00 | 1.72 | 45.00 | 12.00 | 4149111 |
| B052A10200CPG | 10.200 | 0.4016 | 56.00 | 71.00 | 118.00 | 1.74 | 45.00 | 12.00 | 4149112 |
| B052A10300CPG | 10.300 | 0.4055 | 56.00 | 71.00 | 118.00 | 1.76 | 45.00 | 12.00 | 4149293 |
| B052A10400CPG | 10.400 | 0.4094 | 56.00 | 71.00 | 118.00 | 1.78 | 45.00 | 12.00 | 4149295 |
| B052A10500CPG | 10.500 | 0.4134 | 56.00 | 71.00 | 118.00 | 1.80 | 45.00 | 12.00 | 4149296 |
| B052A10800CPG | 10.800 | 0.4252 | 56.00 | 71.00 | 118.00 | 1.85 | 45.00 | 12.00 | 4149300 |
| B052A11000CPG | 11.000 | 0.4331 | 56.00 | 71.00 | 118.00 | 1.88 | 45.00 | 12.00 | 4149302 |
| B052A11200CPG | 11.200 | 0.4409 | 56.00 | 71.00 | 118.00 | 1.92 | 45.00 | 12.00 | 4149305 |
| B052A11500CPG | 11.500 | 0.4528 | 56.00 | 71.00 | 118.00 | 1.97 | 45.00 | 12.00 | 4149308 |
| B052A11800CPG | 11.800 | 0.4646 | 56.00 | 71.00 | 118.00 | 2.02 | 45.00 | 12.00 | 4149312 |
| B052A12000CPG | 12.000 | 0.4724 | 56.00 | 71.00 | 118.00 | 2.06 | 45.00 | 12.00 | 4149315 |
| B052A12100CPG | 12.100 | 0.4764 | 60.00 | 77.00 | 124.00 | 2.08 | 45.00 | 14.00 | 4149316 |
| B052A12200CPG | 12.200 | 0.4803 | 60.00 | 77.00 | 124.00 | 2.10 | 45.00 | 14.00 | 4149317 |
| B052A12300CPG | 12.300 | 0.4843 | 60.00 | 77.00 | 124.00 | 2.11 | 45.00 | 14.00 | 4149318 |
| B052A12500CPG | 12.500 | 0.4921 | 60.00 | 77.00 | 124.00 | 2.15 | 45.00 | 14.00 | 4149321 |
| B052A13000CPG | 13.000 | 0.5118 | 60.00 | 77.00 | 124.00 | 2.24 | 45.00 | 14.00 | 4149326 |
| B052A13100CPG | 13.100 | 0.5157 | 60.00 | 77.00 | 124.00 | 2.25 | 45.00 | 14.00 | 4149328 |
| B052A13500CPG | 13.500 | 0.5315 | 60.00 | 77.00 | 124.00 | 2.33 | 45.00 | 14.00 | 4149332 |
| B052A14000CPG | 14.000 | 0.5512 | 60.00 | 77.00 | 124.00 | 2.41 | 45.00 | 14.00 | 4149338 |
| B052A14200CPG | 14.200 | 0.5591 | 63.00 | 83.00 | 133.00 | 2.45 | 48.00 | 16.00 | 4149340 |
| B052A14500CPG | 14.500 | 0.5709 | 63.00 | 83.00 | 133.00 | 2.50 | 48.00 | 16.00 | 4149344 |
| B052A15100CPG | 15.100 | 0.5945 | 63.00 | 83.00 | 133.00 | 2.61 | 48.00 | 16.00 | 4149352 |
| B052A15800CPG | 15.800 | 0.6220 | 63.00 | 83.00 | 133.00 | 2.73 | 48.00 | 16.00 | 4149360 |
| B052A16000CPG | 16.000 | 0.6299 | 63.00 | 83.00 | 133.00 | 2.77 | 48.00 | 16.00 | 4149363 |
| B052A16500CPG | 16.500 | 0.6496 | 71.00 | 93.00 | 143.00 | 2.86 | 48.00 | 18.00 | 4149369 |
