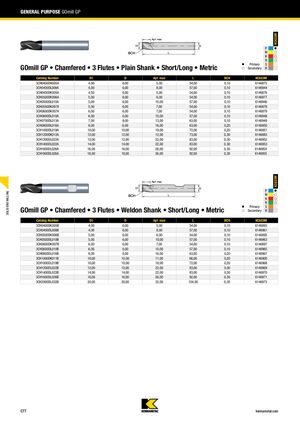

GOmill GP • С фаской • 3 зуба • Цилиндрический хвостовик • Короткая/длинная • Метрическая
| Артикул | D1 | D | Ap1 max | L | BCH | KC633M |
|---|---|---|---|---|---|---|
| 3CH0400DK005A | 4,00 | 6,00 | 5,00 | 54,00 | 0,10 | 6146875 |
| 3CH0400DL008A | 4,00 | 6,00 | 8,00 | 57,00 | 0,10 | 6146944 |
| 3CH0450DK005A | 4,50 | 6,00 | 5,00 | 54,00 | 0,10 | 6146876 |
| 3CH0500DK006A | 5,00 | 6,00 | 6,00 | 54,00 | 0,10 | 6146877 |
| 3CH0500DL010A | 5,00 | 6,00 | 10,00 | 57,00 | 0,10 | 6146946 |
| 3CH0550DK007A | 5,50 | 6,00 | 7,00 | 54,00 | 0,10 | 6146878 |
| 3CH0600DK007A | 6,00 | 6,00 | 7,00 | 54,00 | 0,10 | 6146879 |
| 3CH0600DL010A | 6,00 | 6,00 | 10,00 | 57,00 | 0,10 | 6146948 |
| 3CH0700DL013A | 7,00 | 8,00 | 13,00 | 63,00 | 0,10 | 6146949 |
| 3CH0800DL016A | 8,00 | 8,00 | 16,00 | 63,00 | 0,20 | 6146950 |
| 3CH1000DL019A | 10,00 | 10,00 | 19,00 | 72,00 | 0,20 | 6146951 |
| 3CH1200DK012A | 12,00 | 12,00 | 12,00 | 73,00 | 0,30 | 6146883 |
| 3CH1200DL022A | 12,00 | 12,00 | 22,00 | 83,00 | 0,30 | 6146952 |
| 3CH1400DL022A | 14,00 | 14,00 | 22,00 | 83,00 | 0,30 | 6146953 |
| 3CH1600DL026A | 16,00 | 16,00 | 26,00 | 92,00 | 0,30 | 6146954 |
| 3CH1800DL026A | 18,00 | 18,00 | 26,00 | 92,00 | 0,30 | 6146955 |
GOmill GP • С фаской • 3 зуба • Хвостовик типа Велдон • Короткая/длинная • Метрическая
| Артикул | D1 | D | Ap1 max | L | BCH | KC633M |
|---|---|---|---|---|---|---|
| 3CH0400DK005B | 4,00 | 6,00 | 5,00 | 54,00 | 0,10 | 6146893 |
| 3CH0400DL008B | 4,00 | 6,00 | 8,00 | 57,00 | 0,10 | 6146961 |
| 3CH0500DK006B | 5,00 | 6,00 | 6,00 | 54,00 | 0,10 | 6146895 |
| 3CH0500DL010B | 5,00 | 6,00 | 10,00 | 57,00 | 0,10 | 6146963 |
| 3CH0600DK007B | 6,00 | 6,00 | 7,00 | 54,00 | 0,10 | 6146897 |
| 3CH0600DL010B | 6,00 | 6,00 | 10,00 | 57,00 | 0,10 | 6146965 |
| 3CH0800DL016B | 8,00 | 8,00 | 16,00 | 63,00 | 0,20 | 6146967 |
| 3CH1000DK011B | 10,00 | 10,00 | 11,00 | 66,00 | 0,20 | 6146900 |
| 3CH1000DL019B | 10,00 | 10,00 | 19,00 | 72,00 | 0,20 | 6146968 |
| 3CH1200DL022B | 12,00 | 12,00 | 22,00 | 83,00 | 0,30 | 6146969 |
| 3CH1400DL022B | 14,00 | 14,00 | 22,00 | 83,00 | 0,30 | 6146970 |
| 3CH1600DL026B | 16,00 | 16,00 | 26,00 | 92,00 | 0,30 | 6146971 |
| 3CH2000DL032B | 20,00 | 20,00 | 32,00 | 104,00 | 0,30 | 6146973 |
