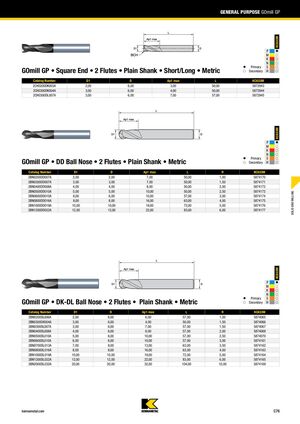

GENERAL PURPOSE GOmill GP KC633M P 䢇 M 嘷 K 嘷 N 嘷 䢇 Primary S 嘷 GOmill GP • Square End • 2 Flutes • Plain Shank • Short/Long • Metric 嘷 Secondary H 嘷 Catalog Number D1 D Ap1 max L KC633M 2CH0200DK003A 2,00 6,00 3,00 50,00 5872943 2CH0300DK004A 3,00 6,00 4,00 50,00 5872944 2CH0300DL007A 3,00 6,00 7,00 57,00 5872945 KC633M P 䢇 M 嘷 K 嘷 N 嘷 䢇 Primary S 嘷 GOmill GP • DD Ball Nose • 2 Flutes • Plain Shank • Metric 嘷 Secondary H 嘷 Catalog Number D1 D Ap1 max L R KC633M 2BN0200DD007A 2,00 2,00 7,00 50,00 1,00 5874170 2BN0300DD007A 3,00 3,00 7,00 50,00 1,50 5874171 2BN0400DD008A 4,00 4,00 8,00 50,00 2,00 5874172 2BN0500DD010A 5,00 5,00 10,00 50,00 2,50 5874173 SOLID END MILLING 2BN0600DD010A 6,00 6,00 10,00 57,00 3,00 5874174 2BN0800DD016A 8,00 8,00 16,00 63,00 4,00 5874175 2BN1000DD019A 10,00 10,00 19,00 72,00 5,00 5874176 2BN1200DD022A 12,00 12,00 22,00 83,00 6,00 5874177 KC633M P 䢇 M 嘷 K 嘷 N 嘷 䢇 Primary S 嘷 GOmill GP • DK-DL Ball Nose • 2 Flutes • Plain Shank • Metric 嘷 Secondary H 嘷 Catalog Number D1 D Ap1 max L R KC633M 2BN0200DL006A 2,00 6,00 6,00 57,00 1,00 5874065 2BN0300DK004A 3,00 6,00 4,00 50,00 1,50 5874066 2BN0300DL007A 3,00 6,00 7,00 57,00 1,50 5874067 2BN0400DL008A 4,00 6,00 8,00 57,00 2,00 5874069 2BN0500DL010A 5,00 6,00 10,00 57,00 2,50 5874070 2BN0600DL010A 6,00 6,00 10,00 57,00 3,00 5874161 2BN0700DL013A 7,00 8,00 13,00 63,00 3,50 5874162 2BN0800DL016A 8,00 8,00 16,00 63,00 4,00 5874163 2BN1000DL019A 10,00 10,00 19,00 72,00 5,00 5874164 2BN1200DL022A 12,00 12,00 22,00 83,00 6,00 5874165 2BN2000DL032A 20,00 20,00 32,00 104,00 10,00 5874169 kennametal.com C76
