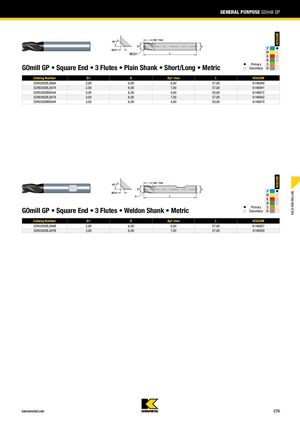

Многоцелевая фреза GOmill GP
GOmill GP • Квадратный конец • 3 зубья • Цилиндрический хвостовик • Короткая/Длинная • Метрическая
| Каталожный номер | D1 | D | Ap1 max | L | KC633M |
|---|---|---|---|---|---|
| 3CH0200DL006A | 2,00 | 6,00 | 6,00 | 57,00 | 6146940 |
| 3CH0250DL007A | 2,50 | 6,00 | 7,00 | 57,00 | 6146941 |
| 3CH0300DK004A | 3,00 | 6,00 | 4,00 | 50,00 | 6146872 |
| 3CH0300DL007A | 3,00 | 6,00 | 7,00 | 57,00 | 6146942 |
| 3CH0350DK004A | 3,50 | 6,00 | 4,00 | 50,00 | 6146874 |
GOmill GP • Квадратный конец • 3 зубья • Хвостовик Weldon • Метрическая
| Каталожный номер | D1 | D | Ap1 max | L | KC633M |
|---|---|---|---|---|---|
| 3CH0200DL006B | 2,00 | 6,00 | 6,00 | 57,00 | 6146957 |
| 3CH0300DL007B | 3,00 | 6,00 | 7,00 | 57,00 | 6146959 |
