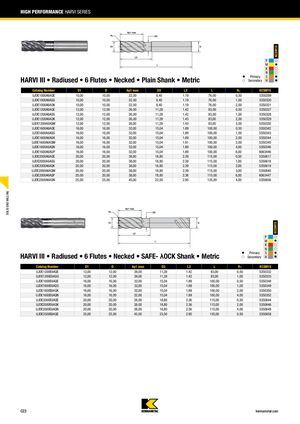

HIGH PERFORMANCE HARVI SERIES KCSM15 P 嘷 M 䢇 K 嘷 N 嘷 䢇 Primary S 䢇 HARVI III • Radiused • 6 Flutes • Necked • Plain Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max D3 L3 L RH KCSM15 UJDE1000A6AQE 10,00 10,00 22,00 9,40 1.19 76,00 0,50 5350289 UJDE1000A6AQG 10,00 10,00 22,00 9,40 1.19 76,00 1,00 5350320 UJDE1000A6AQK 10,00 10,00 22,00 9,40 1.19 76,00 2,00 5350321 UJDE1200A6AQE 12,00 12,00 26,00 11,28 1.42 83,00 0,50 5350327 UJDE1200A6AQG 12,00 12,00 26,00 11,28 1.42 83,00 1,00 5350328 UJDE1200A6AQK 12,00 12,00 26,00 11,28 1.43 83,00 2,00 5350329 UJDE1200A6AQM 12,00 12,00 26,00 11,28 1.43 83,00 3,00 5350330 UJDE1600A6AQE 16,00 16,00 32,00 15,04 1.89 100,00 0,50 5350342 UJDE1600A6AQG 16,00 16,00 32,00 15,04 1.89 100,00 1,00 5350343 UJDE1600A6AQK 16,00 16,00 32,00 15,04 1.89 100,00 2,00 5350344 UJDE1600A6AQM 16,00 16,00 32,00 15,04 1.91 100,00 3,00 5350345 UJDE1600A6AQN 16,00 16,00 32,00 15,04 1.89 100,00 4,00 5350346 UJDE1600A6AQP 16,00 16,00 32,00 15,04 1.89 100,00 6,00 6063446 UJDE2000A6AQE 20,00 20,00 38,00 18,80 2.39 115,00 0,50 5350617 UJDE2000A6AQG 20,00 20,00 38,00 18,80 2.39 115,00 1,00 5350618 UJDE2000A6AQK 20,00 20,00 38,00 18,80 2.39 115,00 2,00 5350619 UJDE2000A6AQM 20,00 20,00 38,00 18,80 2.39 115,00 3,00 5350640 UJDE2000A6AQP 20,00 20,00 38,00 18,80 2.36 115,00 6,00 6063447 UJDE2500A6AQN 25,00 25,00 45,00 23,50 2.95 135,00 4,00 5350656 SOLID END MILLING KCSM15 P 嘷 M 䢇 K 嘷 N 嘷 䢇 Primary S 䢇 HARVI III • Radiused • 6 Flutes • Necked • SAFE- OCK Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max D3 L3 L RH KCSM15 UJDE1200E6AQE 12,00 12,00 26,00 11,28 1.42 83,00 0,50 5350332 UJDE1200E6AQG 12,00 12,00 26,00 11,28 1.42 83,00 1,00 5350333 UJDE1600E6AQE 16,00 16,00 32,00 15,04 1.89 100,00 0,50 5350348 UJDE1600E6AQG 16,00 16,00 32,00 15,04 1.89 100,00 1,00 5350349 UJDE1600E6AQK 16,00 16,00 32,00 15,04 1.89 100,00 2,00 5350350 UJDE1600E6AQN 16,00 16,00 32,00 15,04 1.89 100,00 4,00 5350352 UJDE2000E6AQE 20,00 20,00 38,00 18,80 2.36 115,00 0,50 5350644 UJDE2000E6AQK 20,00 20,00 38,00 18,80 2.36 115,00 2,00 5350646 UJDE2000E6AQN 20,00 20,00 38,00 18,80 2.36 115,00 4,00 5350648 UJDE2500E6AQE 25,00 25,00 45,00 23,50 2.95 135,00 0,50 5350658 C23 kennametal.com
