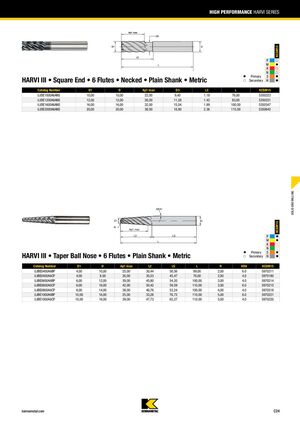

СЕРИЯ HARVI ВЫСОКОЙ ПРОИЗВОДИТЕЛЬНОСТИ
HARVI III • прямой конец • 6 зубьев • с шейкой • с цилиндрическим хвостовиком • метрическая
| Артикул | D1 | D | Ap1 max | D3 | L3 | L | KCSM15 |
|---|---|---|---|---|---|---|---|
| UJDE1000A6ANS | 10,00 | 10,00 | 22,00 | 9,40 | 1.18 | 76,00 | 5350323 |
| UJDE1200A6ANS | 12,00 | 12,00 | 26,00 | 11,28 | 1.42 | 83,00 | 5350331 |
| UJDE1600A6ANS | 16,00 | 16,00 | 32,00 | 15,04 | 1.89 | 100,00 | 5350347 |
| UJDE2000A6ANS | 20,00 | 20,00 | 38,00 | 18,80 | 2.36 | 115,00 | 5350642 |
HARVI III • с конической сферической вставкой • 6 зубьев • с цилиндрическим хвостовиком • метрическая
| Артикул | D1 | D | Ap1 max | L2 | LS | L | R | KRA | KCSM15 |
|---|---|---|---|---|---|---|---|---|---|
| UJBE0400A6BP | 4,00 | 10,00 | 25,00 | 30,44 | 58,56 | 89,00 | 2,00 | 6.0 | 5970211 |
| UJBE0400A6CP | 4,00 | 8,00 | 26,00 | 30,53 | 45,47 | 76,00 | 2,00 | 4.0 | 5970180 |
| UJBE0600A6BP | 6,00 | 12,00 | 39,00 | 45,80 | 54,20 | 100,00 | 3,00 | 4.0 | 5970214 |
| UJBE0600A6CP | 6,00 | 16,00 | 42,00 | 50,42 | 59,59 | 110,00 | 3,00 | 6.0 | 5970215 |
| UJBE0800A6CP | 8,00 | 14,00 | 39,00 | 46,76 | 53,24 | 100,00 | 4,00 | 4.0 | 5970218 |
| UJBE1000A6BP | 10,00 | 16,00 | 25,00 | 33,28 | 76,72 | 110,00 | 5,00 | 6.0 | 5970221 |
| UJBE1000A6CP | 10,00 | 16,00 | 39,00 | 47,73 | 62,27 | 110,00 | 5,00 | 4.0 | 5970220 |
