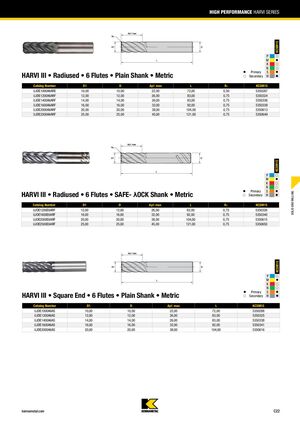

HARVI III • закруглённый конец • 6 зубьев • цилиндрический хвостовик • метрическая система
| Каталожный номер | D1 | D | Ap1 max | L | RH | KCSM15 |
|---|---|---|---|---|---|---|
| UJDE1000A6ARE | 10,00 | 10,00 | 22,00 | 72,00 | 0,50 | 5350287 |
| UJDE1200A6ARF | 12,00 | 12,00 | 26,00 | 83,00 | 0,75 | 5350324 |
| UJDE1400A6ARF | 14,00 | 14,00 | 26,00 | 83,00 | 0,75 | 5350336 |
| UJDE1600A6ARF | 16,00 | 16,00 | 32,00 | 92,00 | 0,75 | 5350339 |
| UJDE2000A6ARF | 20,00 | 20,00 | 38,00 | 104,00 | 0,75 | 5350613 |
| UJDE2500A6ARF | 25,00 | 25,00 | 45,00 | 121,00 | 0,75 | 5350649 |
HARVI III • закруглённый конец • 6 зубьев • хвостовик SAFE-OCK™ • метрическая система
| Каталожный номер | D1 | D | Ap1 max | L | RH | KCSM15 |
|---|---|---|---|---|---|---|
| UJDE1200E6ARF | 12,00 | 12,00 | 26,00 | 83,00 | 0,75 | 5350326 |
| UJDE1600E6ARF | 16,00 | 16,00 | 32,00 | 92,00 | 0,75 | 5350340 |
| UJDE2000E6ARF | 20,00 | 20,00 | 38,00 | 104,00 | 0,75 | 5350615 |
| UJDE2500E6ARF | 25,00 | 25,00 | 45,00 | 121,00 | 0,75 | 5350650 |
HARVI III • прямой конец • 6 зубьев • цилиндрический хвостовик • метрическая система
| Каталожный номер | D1 | D | Ap1 max | L | KCSM15 |
|---|---|---|---|---|---|
| UJDE1000A6AS | 10,00 | 10,00 | 22,00 | 72,00 | 5350288 |
| UJDE1200A6AS | 12,00 | 12,00 | 26,00 | 83,00 | 5350325 |
| UJDE1400A6AS | 14,00 | 14,00 | 26,00 | 83,00 | 5350338 |
| UJDE1600A6AS | 16,00 | 16,00 | 32,00 | 92,00 | 5350341 |
| UJDE2000A6AS | 20,00 | 20,00 | 38,00 | 104,00 | 5350616 |
