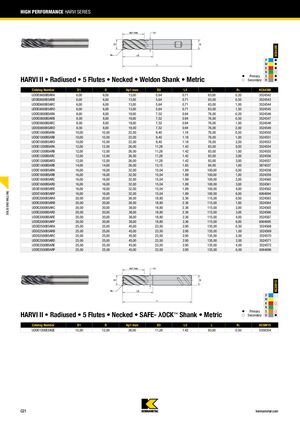

HARVI II • закруглённый конец • 5 зубьев • суженный • хвостовик с лыской • метрическая система
| Каталожный номер | D1 | D | Ap1 max | D3 | L3 | L | RH | KC643M |
|---|---|---|---|---|---|---|---|---|
| UDDE0600B5ARA | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 0,20 | 3524542 |
| UDDE0600B5ARB | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 0,50 | 3524543 |
| UDDE0600B5ARC | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 1,00 | 3524544 |
| UDDE0600B5ARD | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 1,50 | 3524545 |
| UDDE0800B5ARA | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 0,20 | 3524546 |
| UDDE0800B5ARB | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 0,50 | 3524547 |
| UDDE0800B5ARC | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 1,00 | 3524548 |
| UDDE0800B5ARD | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 2,00 | 3524549 |
| UDDE1000B5ARA | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 0,50 | 3524550 |
| UDDE1000B5ARB | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 1,00 | 3524551 |
| UDDE1000B5ARD | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 2,50 | 3524553 |
| UDDE1200B5ARA | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 0,50 | 3524554 |
| UDDE1200B5ARB | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 1,00 | 3524555 |
| UDDE1200B5ARC | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 2,00 | 3524556 |
| UDDE1200B5ARD | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 3,00 | 3524557 |
| UDDE1400B5ARB | 14,00 | 14,00 | 26,00 | 13,15 | 1,65 | 84,00 | 1,00 | 3874037 |
| UDDE1600B5ARA | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 0,50 | 3524558 |
| UDDE1600B5ARB | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 1,00 | 3524559 |
| UDDE1600B5ARC | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 2,00 | 3524560 |
| UDDE1600B5ARD | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 3,00 | 3524561 |
| UDDE1600B5ARE | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 4,00 | 3524562 |
| UDDE1600B5ARP | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 6,00 | 6064694 |
| UDDE2000B5ARA | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 0,50 | 3524563 |
| UDDE2000B5ARB | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 1,00 | 3524564 |
| UDDE2000B5ARC | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 2,00 | 3524565 |
| UDDE2000B5ARD | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 3,00 | 3524566 |
| UDDE2000B5ARE | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 4,00 | 3524567 |
| UDDE2000B5ARP | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 6,00 | 6064695 |
| UDDE2500B5ARA | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 0,50 | 3524568 |
| UDDE2500B5ARB | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 1,00 | 3524569 |
| UDDE2500B5ARC | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 2,00 | 3524570 |
| UDDE2500B5ARD | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 3,00 | 3524571 |
| UDDE2500B5ARE | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 4,00 | 3524572 |
| UDDE2500B5ARP | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 6,00 | 6064696 |
HARVI II • закруглённый конец • 5 зубьев • суженный • хвостовик SAFE-OCK™ • метрическая система
| Каталожный номер | D1 | D | Ap1 max | D3 | L3 | L | RH | KCSM15 |
|---|---|---|---|---|---|---|---|---|
| UDDE1200E5AQE | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 0,50 | 5358354 |
