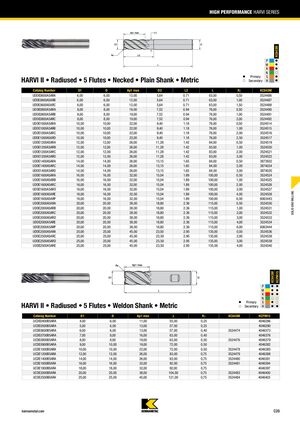

HARVI II • закруглённый конец • 5 зубьев • суженный • цилиндрический хвостовик • метрическая система
| Каталожный номер | D1 | D | Ap1 max | D3 | L3 | L | RH | KC643M |
|---|---|---|---|---|---|---|---|---|
| UDDE0600A5ARA | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 0,50 | 3524486 |
| UDDE0600A5ARB | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 1,00 | 3524487 |
| UDDE0600A5ARC | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 1,50 | 3524488 |
| UDDE0800A5ARA | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 0,50 | 3524490 |
| UDDE0800A5ARB | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 1,00 | 3524491 |
| UDDE0800A5ARC | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 2,00 | 3524492 |
| UDDE1000A5ARA | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 0,50 | 3524514 |
| UDDE1000A5ARB | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 1,00 | 3524515 |
| UDDE1000A5ARC | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 2,00 | 3524516 |
| UDDE1000A5ARD | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 2,50 | 3524517 |
| UDDE1200A5ARA | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 84,00 | 0,50 | 3524519 |
| UDDE1200A5ARB | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 1,00 | 3524520 |
| UDDE1200A5ARC | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 2,00 | 3524521 |
| UDDE1200A5ARD | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 3,00 | 3524522 |
| UDDE1400A5ARA | 14,00 | 14,00 | 26,00 | 13,15 | 1,65 | 84,00 | 0,50 | 3873932 |
| UDDE1400A5ARC | 14,00 | 14,00 | 26,00 | 13,15 | 1,65 | 84,00 | 2,00 | 3874034 |
| UDDE1400A5ARD | 14,00 | 14,00 | 26,00 | 13,15 | 1,65 | 84,00 | 3,00 | 3874035 |
| UDDE1600A5ARA | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 0,50 | 3524524 |
| UDDE1600A5ARB | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 1,00 | 3524525 |
| UDDE1600A5ARC | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 2,00 | 3524526 |
| UDDE1600A5ARD | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 3,00 | 3524527 |
| UDDE1600A5ARE | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 4,00 | 3524528 |
| UDDE1600A5ARP | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 6,00 | 6063443 |
| UDDE2000A5ARA | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 0,50 | 3524530 |
| UDDE2000A5ARB | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 1,00 | 3524531 |
| UDDE2000A5ARC | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 2,00 | 3524532 |
| UDDE2000A5ARD | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 3,00 | 3524533 |
| UDDE2000A5ARE | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 4,00 | 3524534 |
| UDDE2000A5ARP | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 6,00 | 6063444 |
| UDDE2500A5ARA | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 0,50 | 3524536 |
| UDDE2500A5ARC | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 2,00 | 3524538 |
| UDDE2500A5ARD | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 3,00 | 3524539 |
| UDDE2500A5ARE | 25,00 | 25,00 | 45,00 | 23,50 | 2,95 | 135,00 | 4,00 | 3524540 |
HARVI II • закруглённый конец • 5 зубьев • хвостовик с лыской • метрическая система
| Каталожный номер | D1 | D | Ap1 max | L | RH | KC643M | KCPM15 |
|---|---|---|---|---|---|---|---|
| UCDE0400B5ARA | 4,00 | 6,00 | 11,00 | 55,00 | 0,25 | 4046286 | |
| UCDE0500B5ARA | 5,00 | 6,00 | 13,00 | 57,00 | 0,25 | 4046290 | |
| UCDE0600B5ARA | 6,00 | 6,00 | 13,00 | 57,00 | 0,40 | 3524474 | 4046373 |
| UCDE0700B5ARA | 7,00 | 8,00 | 16,00 | 63,00 | 0,40 | 4046376 | |
| UCDE0800B5ARA | 8,00 | 8,00 | 19,00 | 63,00 | 0,50 | 3524476 | 4046379 |
| UCDE0900B5ARA | 9,00 | 10,00 | 19,00 | 72,00 | 0,50 | 4046382 | |
| UCDE1000B5ARA | 10,00 | 10,00 | 22,00 | 72,00 | 0,50 | 3524478 | 4046385 |
| UCDE1200B5ARA | 12,00 | 12,00 | 26,00 | 83,00 | 0,75 | 3524479 | 4046388 |
| UCDE1400B5ARA | 14,00 | 14,00 | 26,00 | 83,00 | 0,75 | 3524480 | 4046391 |
| UCDE1600B5ARA | 16,00 | 16,00 | 32,00 | 92,00 | 0,75 | 3524481 | 4046394 |
| UCDE1800B5ARA | 18,00 | 18,00 | 32,00 | 92,00 | 0,75 | 4046397 | |
| UCDE2000B5ARA | 20,00 | 20,00 | 38,00 | 104,00 | 0,75 | 3524483 | 4046400 |
| UCDE2500B5ARA | 25,00 | 25,00 | 45,00 | 121,00 | 0,75 | 3524484 | 4046403 |
