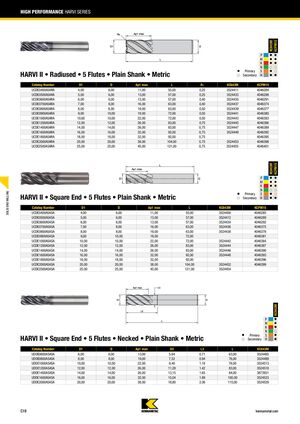

HARVI II • закруглённый конец • 5 зубьев • цилиндрический хвостовик • метрическая система
| Каталожный номер | D1 | D | Ap1 max | L | RH | KC643M | KCPM15 |
|---|---|---|---|---|---|---|---|
| UCDE0400A5ARA | 4,00 | 6,00 | 11,00 | 55,00 | 0,25 | 3524411 | 4046284 |
| UCDE0500A5ARA | 5,00 | 6,00 | 13,00 | 57,00 | 0,25 | 3524433 | 4046288 |
| UCDE0600A5ARA | 6,00 | 6,00 | 13,00 | 57,00 | 0,40 | 3524435 | 4046291 |
| UCDE0700A5ARA | 7,00 | 8,00 | 16,00 | 63,00 | 0,40 | 3524437 | 4046374 |
| UCDE0800A5ARA | 8,00 | 8,00 | 19,00 | 63,00 | 0,50 | 3524439 | 4046377 |
| UCDE0900A5ARA | 9,00 | 10,00 | 19,00 | 72,00 | 0,50 | 3524441 | 4046380 |
| UCDE1000A5ARA | 10,00 | 10,00 | 22,00 | 72,00 | 0,50 | 3524443 | 4046383 |
| UCDE1200A5ARA | 12,00 | 12,00 | 26,00 | 83,00 | 0,75 | 3524445 | 4046386 |
| UCDE1400A5ARA | 14,00 | 14,00 | 26,00 | 83,00 | 0,75 | 3524447 | 4046389 |
| UCDE1600A5ARA | 16,00 | 16,00 | 32,00 | 92,00 | 0,75 | 3524449 | 4046392 |
| UCDE1800A5ARA | 18,00 | 18,00 | 32,00 | 92,00 | 0,75 | 4046395 | |
| UCDE2000A5ARA | 20,00 | 20,00 | 38,00 | 104,00 | 0,75 | 3524453 | 4046398 |
| UCDE2500A5ARA | 25,00 | 25,00 | 45,00 | 121,00 | 0,75 | 3524455 | 4046401 |
HARVI II • прямой конец • 5 зубьев • цилиндрический хвостовик • метрическая система
| Каталожный номер | D1 | D | Ap1 max | L | KC643M | KCPM15 |
|---|---|---|---|---|---|---|
| UCDE0400A5ASA | 4,00 | 6,00 | 11,00 | 55,00 | 3524456 | 4046285 |
| UCDE0500A5ASA | 5,00 | 6,00 | 13,00 | 57,00 | 3524412 | 4046289 |
| UCDE0600A5ASA | 6,00 | 6,00 | 13,00 | 57,00 | 3524434 | 4046292 |
| UCDE0700A5ASA | 7,00 | 8,00 | 16,00 | 63,00 | 3524436 | 4046375 |
| UCDE0800A5ASA | 8,00 | 8,00 | 19,00 | 63,00 | 3524438 | 4046378 |
| UCDE0900A5ASA | 9,00 | 10,00 | 19,00 | 72,00 | 4046381 | |
| UCDE1000A5ASA | 10,00 | 10,00 | 22,00 | 72,00 | 3524442 | 4046384 |
| UCDE1200A5ASA | 12,00 | 12,00 | 26,00 | 83,00 | 3524444 | 4046387 |
| UCDE1400A5ASA | 14,00 | 14,00 | 26,00 | 83,00 | 3524446 | 4046390 |
| UCDE1600A5ASA | 16,00 | 16,00 | 32,00 | 92,00 | 3524448 | 4046393 |
| UCDE1800A5ASA | 18,00 | 18,00 | 32,00 | 92,00 | 4046396 | |
| UCDE2000A5ASA | 20,00 | 20,00 | 38,00 | 104,00 | 3524452 | 4046399 |
| UCDE2500A5ASA | 25,00 | 25,00 | 45,00 | 121,00 | 3524454 |
HARVI II • прямой конец • 5 зубьев • суженный • цилиндрический хвостовик • метрическая система
| Каталожный номер | D1 | D | Ap1 max | D3 | L3 | L | KC643M |
|---|---|---|---|---|---|---|---|
| UDDE0600A5ASA | 6,00 | 6,00 | 13,00 | 5,64 | 0,71 | 63,00 | 3524485 |
| UDDE0800A5ASA | 8,00 | 8,00 | 19,00 | 7,52 | 0,94 | 76,00 | 3524489 |
| UDDE1000A5ASA | 10,00 | 10,00 | 22,00 | 9,40 | 1,18 | 76,00 | 3524513 |
| UDDE1200A5ASA | 12,00 | 12,00 | 26,00 | 11,28 | 1,42 | 83,00 | 3524518 |
| UDDE1400A5ASA | 14,00 | 14,00 | 26,00 | 13,15 | 1,65 | 84,00 | 3873931 |
| UDDE1600A5ASA | 16,00 | 16,00 | 32,00 | 15,04 | 1,89 | 100,00 | 3524523 |
| UDDE2000A5ASA | 20,00 | 20,00 | 38,00 | 18,80 | 2,36 | 115,00 | 3524529 |
