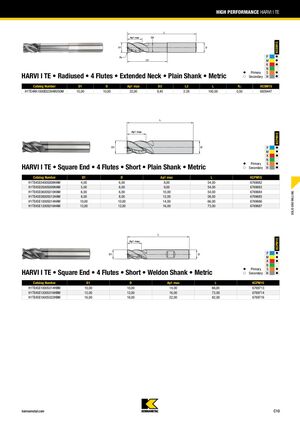

HARVI I TE • С округлением • 4 зубца • Удлиненная шейка • Цилиндрический хвостовик • Метрический
| Каталожный номер | D1 | D | Ap1 max | D3 | L3 | L | RH | KCSM15 |
|---|---|---|---|---|---|---|---|---|
| H1TE4RA1000E022HAR050M | 10,00 | 10,00 | 22,00 | 9,40 | 2.28 | 100,00 | 0,50 | 6929447 |
HARVI I TE • Плоский конец • 4 зубца • Короткая • Цилиндрический хвостовик • Метрический
| Каталожный номер | D1 | D | Ap1 max | L | KCPM15 |
|---|---|---|---|---|---|
| H1TE4SE0400S008HAM | 4,00 | 6,00 | 8,00 | 54,00 | 6769682 |
| H1TE4SE0500S009HAM | 5,00 | 6,00 | 9,00 | 54,00 | 6769683 |
| H1TE4SE0600S010HAM | 6,00 | 6,00 | 10,00 | 54,00 | 6769684 |
| H1TE4SE0800S012HAM | 8,00 | 8,00 | 12,00 | 58,00 | 6769685 |
| H1TE4SE1000S014HAM | 10,00 | 10,00 | 14,00 | 66,00 | 6769686 |
| H1TE4SE1200S016HAM | 12,00 | 12,00 | 16,00 | 73,00 | 6769687 |
HARVI I TE • Плоский конец • 4 зубца • Короткая • Хвостовик Велдон • Метрический
| Каталожный номер | D1 | D | Ap1 max | L | KCPM15 |
|---|---|---|---|---|---|
| H1TE4SE1000S014HBM | 10,00 | 10,00 | 14,00 | 66,00 | 6769713 |
| H1TE4SE1200S016HBM | 12,00 | 12,00 | 16,00 | 73,00 | 6769714 |
| H1TE4SE1600S022HBM | 16,00 | 16,00 | 22,00 | 82,00 | 6769716 |
