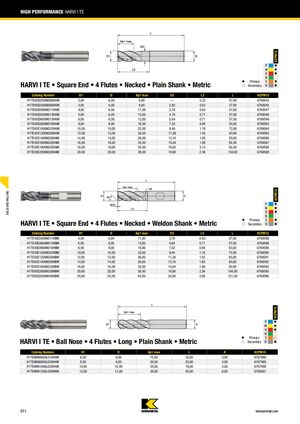

HARVI I TE • Плоский конец • 4 зубца • С шейкой • Цилиндрический хвостовик • Метрический
| Каталожный номер | D1 | D | Ap1 max | D3 | L3 | L | KCPM15 |
|---|---|---|---|---|---|---|---|
| H1TE4SE0200N006HAM | 2,00 | 6,00 | 6,00 | — | 0.32 | 57,00 | 6769543 |
| H1TE4SE0300N008HAM | 3,00 | 6,00 | 8,00 | 2,82 | 0.63 | 57,00 | 6769545 |
| H1TE4SE0400N011HAM | 4,00 | 6,00 | 11,00 | 3,76 | 0.63 | 57,00 | 6769547 |
| H1TE4SE0500N013HAM | 5,00 | 6,00 | 13,00 | 4,70 | 0.71 | 57,00 | 6769548 |
| H1TE4SE0600N013HAM | 6,00 | 6,00 | 13,00 | 5,64 | 0.71 | 57,00 | 6769549 |
| H1TE4SE0800N016HAM | 8,00 | 8,00 | 16,00 | 7,52 | 0.94 | 63,00 | 6769563 |
| H1TE4SE1000N022HAM | 10,00 | 10,00 | 22,00 | 9,40 | 1.18 | 72,00 | 6769564 |
| H1TE4SE1200N026HAM | 12,00 | 12,00 | 26,00 | 11,28 | 1.42 | 83,00 | 6769565 |
| H1TE4SE1400N026HAM | 14,00 | 14,00 | 26,00 | 13,16 | 1.65 | 83,00 | 6769566 |
| H1TE4SE1600N032HAM | 16,00 | 16,00 | 32,00 | 15,04 | 1.89 | 92,00 | 6769567 |
| H1TE4SE1800N035HAM | 18,00 | 18,00 | 35,00 | 16,92 | 2.13 | 92,00 | 6769568 |
| H1TE4SE2000N038HAM | 20,00 | 20,00 | 38,00 | 18,80 | 2.36 | 104,00 | 6769569 |
HARVI I TE • Плоский конец • 4 зубца • С шейкой • Хвостовик Велдон • Метрический
| Каталожный номер | D1 | D | Ap1 max | D3 | L3 | L | KCPM15 |
|---|---|---|---|---|---|---|---|
| H1TE4SE0400N011HBM | 4,00 | 6,00 | 11,00 | 3,76 | 0.63 | 57,00 | 6769586 |
| H1TE4SE0600N013HBM | 6,00 | 6,00 | 13,00 | 5,64 | 0.71 | 57,00 | 6769588 |
| H1TE4SE0800N016HBM | 8,00 | 8,00 | 16,00 | 7,52 | 0.94 | 63,00 | 6769589 |
| H1TE4SE1000N022HBM | 10,00 | 10,00 | 22,00 | 9,40 | 1.18 | 72,00 | 6769590 |
| H1TE4SE1200N026HBM | 12,00 | 12,00 | 26,00 | 11,28 | 1.42 | 83,00 | 6769591 |
| H1TE4SE1400N026HBM | 14,00 | 14,00 | 26,00 | 13,16 | 1.65 | 83,00 | 6769592 |
| H1TE4SE1600N032HBM | 16,00 | 16,00 | 32,00 | 15,04 | 1.89 | 92,00 | 6769593 |
| H1TE4SE2000N038HBM | 20,00 | 20,00 | 38,00 | 18,80 | 2.36 | 104,00 | 6769595 |
| H1TE4SE2500N045HBM | 25,00 | 25,00 | 45,00 | 24,00 | 2.95 | 121,00 | 6769596 |
HARVI I TE • Сферический конец • 4 зубца • Длинная • Цилиндрический хвостовик • Метрический
| Каталожный номер | D1 | D | Ap1 max | L | R | KCPM15 |
|---|---|---|---|---|---|---|
| H1TE4BN0600L015HAM | 6,00 | 6,00 | 15,00 | 55,00 | 3,00 | 6767988 |
| H1TE4BN0800L020HAM | 8,00 | 8,00 | 20,00 | 63,00 | 4,00 | 6767989 |
| H1TE4BN1000L025HAM | 10,00 | 10,00 | 25,00 | 76,00 | 5,00 | 6767990 |
| H1TE4BN1200L030HAM | 12,00 | 12,00 | 30,00 | 83,00 | 6,00 | 6768001 |
