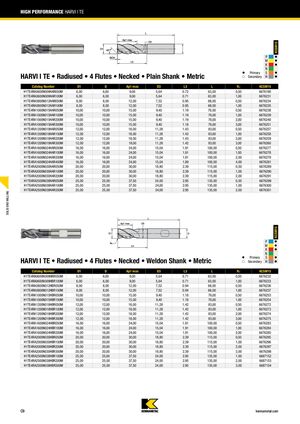

HIGH PERFORMANCE HARVI I TE KCSM15 P 䢇 M 䢇 K 䢇 N 䢇 Primary S 䢇 HARVI I TE • Radiused • 4 Flutes • Necked • Plain Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max D3 L3 L RH KCSM15 H1TE4RA0600N009HAR050M 6,00 6,00 9,00 5,64 0.72 63,00 0,50 6676190 H1TE4RA0600N009HAR100M 6,00 6,00 9,00 5,64 0.71 63,00 1,00 6676231 H1TE4RA0800N012HAR050M 8,00 8,00 12,00 7,52 0.95 68,00 0,50 6676234 H1TE4RA0800N012HAR100M 8,00 8,00 12,00 7,52 0.95 68,00 1,00 6676235 H1TE4RA1000N015HAR050M 10,00 10,00 15,00 9,40 1.19 76,00 0,50 6676238 H1TE4RA1000N015HAR100M 10,00 10,00 15,00 9,40 1.19 76,00 1,00 6676239 H1TE4RA1000N015HAR200M 10,00 10,00 15,00 9,40 1.19 76,00 2,00 6676240 H1TE4RA1000N015HAR300M 10,00 10,00 15,00 9,40 1.18 76,00 3,00 6676251 H1TE4RA1200N018HAR050M 12,00 12,00 18,00 11,28 1.43 83,00 0,50 6676257 H1TE4RA1200N018HAR100M 12,00 12,00 18,00 11,28 1.43 83,00 1,00 6676258 H1TE4RA1200N018HAR200M 12,00 12,00 18,00 11,28 1.43 83,00 2,00 6676259 H1TE4RA1200N018HAR300M 12,00 12,00 18,00 11,28 1.42 83,00 3,00 6676260 H1TE4RA1600N024HAR050M 16,00 16,00 24,00 15,04 1.91 100,00 0,50 6676277 H1TE4RA1600N024HAR100M 16,00 16,00 24,00 15,04 1.91 100,00 1,00 6676278 H1TE4RA1600N024HAR200M 16,00 16,00 24,00 15,04 1.91 100,00 2,00 6676279 H1TE4RA1600N024HAR400M 16,00 16,00 24,00 15,04 1.89 100,00 4,00 6676281 H1TE4RA2000N030HAR050M 20,00 20,00 30,00 18,80 2.39 115,00 0,50 6676289 H1TE4RA2000N030HAR100M 20,00 20,00 30,00 18,80 2.39 115,00 1,00 6676290 H1TE4RA2000N030HAR200M 20,00 20,00 30,00 18,80 2.39 115,00 2,00 6676291 H1TE4RA2500N038HAR050M 25,00 25,00 37,50 24,00 2.95 135,00 0,50 6676299 H1TE4RA2500N038HAR100M 25,00 25,00 37,50 24,00 2.95 135,00 1,00 6676300 H1TE4RA2500N038HAR200M 25,00 25,00 37,50 24,00 2.95 135,00 2,00 6676301 SOLID END MILLING KCSM15 P 䢇 M 䢇 K 䢇 N 䢇 Primary S 䢇 HARVI I TE • Radiused • 4 Flutes • Necked • Weldon Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max D3 L3 L RH KCSM15 H1TE4RA0600N009HBR050M 6,00 6,00 9,00 5,64 0.71 63,00 0,50 6676232 H1TE4RA0600N009HBR100M 6,00 6,00 9,00 5,64 0.71 63,00 1,00 6676233 H1TE4RA0800N012HBR050M 8,00 8,00 12,00 7,52 0.94 68,00 0,50 6676236 H1TE4RA0800N012HBR100M 8,00 8,00 12,00 7,52 0.94 68,00 1,00 6676237 H1TE4RA1000N015HBR050M 10,00 10,00 15,00 9,40 1.18 76,00 0,50 6676253 H1TE4RA1000N015HBR100M 10,00 10,00 15,00 9,40 1.18 76,00 1,00 6676254 H1TE4RA1200N018HBR050M 12,00 12,00 18,00 11,28 1.42 83,00 0,50 6676272 H1TE4RA1200N018HBR100M 12,00 12,00 18,00 11,28 1.42 83,00 1,00 6676273 H1TE4RA1200N018HBR200M 12,00 12,00 18,00 11,28 1.42 83,00 2,00 6676274 H1TE4RA1200N018HBR300M 12,00 12,00 18,00 11,28 1.42 83,00 3,00 6676275 H1TE4RA1600N024HBR050M 16,00 16,00 24,00 15,04 1.91 100,00 0,50 6676283 H1TE4RA1600N024HBR100M 16,00 16,00 24,00 15,04 1.91 100,00 1,00 6676284 H1TE4RA1600N024HBR200M 16,00 16,00 24,00 15,04 1.91 100,00 2,00 6676285 H1TE4RA2000N030HBR050M 20,00 20,00 30,00 18,80 2.39 115,00 0,50 6676295 H1TE4RA2000N030HBR100M 20,00 20,00 30,00 18,80 2.39 115,00 1,00 6676296 H1TE4RA2000N030HBR200M 20,00 20,00 30,00 18,80 2.39 115,00 2,00 6676297 H1TE4RA2000N030HBR300M 20,00 20,00 30,00 18,80 2.39 115,00 3,00 6676298 H1TE4RA2500N038HBR100M 25,00 25,00 37,50 24,00 2.95 135,00 1,00 6687152 H1TE4RA2500N038HBR200M 25,00 25,00 37,50 24,00 2.95 135,00 2,00 6687153 H1TE4RA2500N038HBR300M 25,00 25,00 37,50 24,00 2.95 135,00 3,00 6687154 C9 kennametal.com
