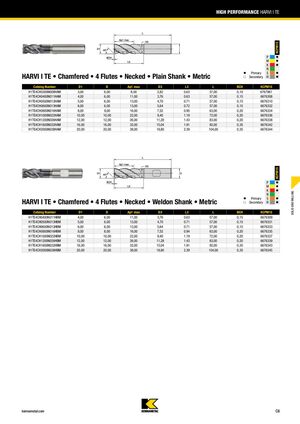

HIGH PERFORMANCE HARVI I TE KCPM15 P 䢇 M 䢇 K 䢇 N 䢇 Primary S 䢇 HARVI I TE • Chamfered • 4 Flutes • Necked • Plain Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max D3 L3 L BCH KCPM15 H1TE4CH0300N008HAM 3,00 6,00 8,00 2,82 0.63 57,00 0,10 6767961 H1TE4CH0400N011HAM 4,00 6,00 11,00 3,76 0.63 57,00 0,15 6676308 H1TE4CH0500N013HAM 5,00 6,00 13,00 4,70 0.71 57,00 0,15 6676310 H1TE4CH0600N013HAM 6,00 6,00 13,00 5,64 0.72 57,00 0,15 6676332 H1TE4CH0800N016HAM 8,00 8,00 16,00 7,52 0.95 63,00 0,20 6676334 H1TE4CH1000N022HAM 10,00 10,00 22,00 9,40 1.19 72,00 0,20 6676336 H1TE4CH1200N026HAM 12,00 12,00 26,00 11,28 1.43 83,00 0,20 6676338 H1TE4CH1600N032HAM 16,00 16,00 32,00 15,04 1.91 92,00 0,35 6676342 H1TE4CH2000N038HAM 20,00 20,00 38,00 18,80 2.39 104,00 0,35 6676344 KCPM15 P 䢇 M 䢇 K 䢇 SOLID END MILLING N 䢇 Primary S 䢇 HARVI I TE • Chamfered • 4 Flutes • Necked • Weldon Shank • Metric 嘷 Secondary H 䢇 Catalog Number D1 D Ap1 max D3 L3 L BCH KCPM15 H1TE4CH0400N011HBM 4,00 6,00 11,00 3,76 0.63 57,00 0,15 6676309 H1TE4CH0500N013HBM 5,00 6,00 13,00 4,70 0.71 57,00 0,15 6676331 H1TE4CH0600N013HBM 6,00 6,00 13,00 5,64 0.71 57,00 0,15 6676333 H1TE4CH0800N016HBM 8,00 8,00 16,00 7,52 0.94 63,00 0,20 6676335 H1TE4CH1000N022HBM 10,00 10,00 22,00 9,40 1.19 72,00 0,20 6676337 H1TE4CH1200N026HBM 12,00 12,00 26,00 11,28 1.43 83,00 0,20 6676339 H1TE4CH1600N032HBM 16,00 16,00 32,00 15,04 1.91 92,00 0,35 6676343 H1TE4CH2000N038HBM 20,00 20,00 38,00 18,80 2.39 104,00 0,35 6676345 kennametal.com C8
