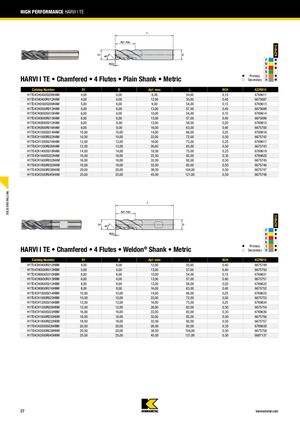

ВЫСОКОПРОИЗВОДИТЕЛЬНОЕ ФРЕЗЕРОВАНИЕ HARVI I TE
HARVI I TE • Фасочная • 4 зуба • Цилиндрический хвостовик • Метрический
| Каталожный номер | D1 | D | Ap1 макс | L | BCH | KCPM15 |
|---|---|---|---|---|---|---|
| H1TE4CH0400S008HAM | 4,00 | 6,00 | 8,00 | 54,00 | 0,15 | 6769611 |
| H1TE4CH0400R012HAM | 4,00 | 6,00 | 12,00 | 55,00 | 0,40 | 6675697 |
| H1TE4CH0500S009HAM | 5,00 | 6,00 | 9,00 | 54,00 | 0,15 | 6769613 |
| H1TE4CH0500R013HAM | 5,00 | 6,00 | 13,00 | 57,00 | 0,40 | 6675698 |
| H1TE4CH0600S010HAM | 6,00 | 6,00 | 10,00 | 54,00 | 0,15 | 6769614 |
| H1TE4CH0600R013HAM | 6,00 | 6,00 | 13,00 | 57,00 | 0,40 | 6675699 |
| H1TE4CH0800S012HAM | 8,00 | 8,00 | 12,00 | 58,00 | 0,20 | 6769615 |
| H1TE4CH0800R016HAM | 8,00 | 8,00 | 16,00 | 63,00 | 0,40 | 6675700 |
| H1TE4CH1000S014HAM | 10,00 | 10,00 | 14,00 | 66,00 | 0,25 | 6769616 |
| H1TE4CH1000R022HAM | 10,00 | 10,00 | 22,00 | 72,00 | 0,50 | 6675742 |
| H1TE4CH1200S016HAM | 12,00 | 12,00 | 16,00 | 73,00 | 0,25 | 6769617 |
| H1TE4CH1200R026HAM | 12,00 | 12,00 | 26,00 | 83,00 | 0,50 | 6675743 |
| H1TE4CH1400S018HAM | 14,00 | 14,00 | 18,00 | 75,00 | 0,25 | 6769619 |
| H1TE4CH1600S022HAM | 16,00 | 16,00 | 22,00 | 82,00 | 0,35 | 6769620 |
| H1TE4CH1600R032HAM | 16,00 | 16,00 | 32,00 | 92,00 | 0,50 | 6675745 |
| H1TE4CH1800R032HAM | 18,00 | 18,00 | 32,00 | 92,00 | 0,50 | 6675746 |
| H1TE4CH2000R038HAM | 20,00 | 20,00 | 38,00 | 104,00 | 0,50 | 6675747 |
| H1TE4CH2500R045HAM | 25,00 | 25,00 | 45,00 | 121,00 | 0,50 | 6675748 |
HARVI I TE • Фасочная • 4 зуба • Хвостовик Weldon® • Метрический
| Каталожный номер | D1 | D | Ap1 макс | L | BCH | KCPM15 |
|---|---|---|---|---|---|---|
| H1TE4CH0400R012HBM | 4,00 | 6,00 | 12,00 | 55,00 | 0,40 | 6675749 |
| H1TE4CH0500R013HBM | 5,00 | 6,00 | 13,00 | 57,00 | 0,40 | 6675750 |
| H1TE4CH0600S010HBM | 6,00 | 6,00 | 10,00 | 54,00 | 0,15 | 6769631 |
| H1TE4CH0600R013HBM | 6,00 | 6,00 | 13,00 | 57,00 | 0,40 | 6675751 |
| H1TE4CH0800S012HBM | 8,00 | 8,00 | 12,00 | 58,00 | 0,20 | 6769632 |
| H1TE4CH0800R016HBM | 8,00 | 8,00 | 16,00 | 63,00 | 0,40 | 6675752 |
| H1TE4CH1000S014HBM | 10,00 | 10,00 | 14,00 | 66,00 | 0,25 | 6769633 |
| H1TE4CH1000R022HBM | 10,00 | 10,00 | 22,00 | 72,00 | 0,50 | 6675753 |
| H1TE4CH1200S016HBM | 12,00 | 12,00 | 16,00 | 73,00 | 0,25 | 6769634 |
| H1TE4CH1200R026HBM | 12,00 | 12,00 | 26,00 | 83,00 | 0,50 | 6675754 |
| H1TE4CH1600S022HBM | 16,00 | 16,00 | 22,00 | 82,00 | 0,35 | 6769636 |
| H1TE4CH1600R032HBM | 16,00 | 16,00 | 32,00 | 92,00 | 0,50 | 6675756 |
| H1TE4CH1800R032HBM | 18,00 | 18,00 | 32,00 | 92,00 | 0,50 | 6675757 |
| H1TE4CH2000S026HBM | 20,00 | 20,00 | 26,00 | 92,00 | 0,35 | 6769638 |
| H1TE4CH2000R038HBM | 20,00 | 20,00 | 38,00 | 104,00 | 0,50 | 6675758 |
| H1TE4CH2500R045HBM | 25,00 | 25,00 | 45,00 | 121,00 | 0,50 | 6687137 |
