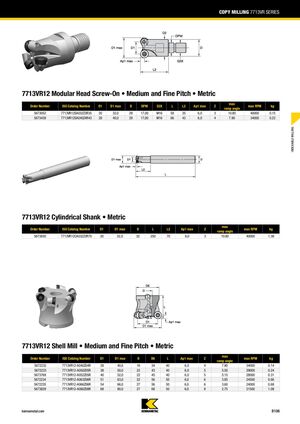

COPY MILLING 7713VR SERIES 7713VR12 Modular Head Screw-On • Medium and Fine Pitch • Metric max Order Number ISO Catalog Number D1 D1 max D DPM G3X L L2 Ap1 max Z max RPM kg ramp angle 5673052 7713VR12SA032Z3R35 20 32,0 29 17,00 M16 58 35 6,0 3 10.80 40000 0.15 5673439 7713VR12SA040Z4R43 28 40,0 29 17,00 M16 66 43 6,0 4 7.90 34000 0.23 INDEXABLE MILLING 7713VR12 Cylindrical Shank • Metric max Order Number ISO Catalog Number D1 D1 max D L L2 Ap1 max Z max RPM kg ramp angle 5673830 7713VR12CA032Z3R70 20 32,0 32 250 70 6,0 3 10.80 40000 1.38 7713VR12 Shell Mill • Medium and Fine Pitch • Metric max Order Number ISO Catalog Number D1 D1 max D D6 L Ap1 max Z max RPM kg ramp angle 5672232 7713VR12-A040Z04R 28 40,0 16 34 40 6,0 4 7.90 34000 0.14 5672233 7713VR12-A050Z05R 38 50,0 22 43 40 6,0 5 5.50 29000 0.24 5673769 7713VR12-A052Z05R 40 52,0 22 45 40 6,0 5 5.15 28000 0.31 5672234 7713VR12-A063Z06R 51 63,0 22 56 50 6,0 6 3.85 24500 0.66 5672235 7713VR12-A066Z06R 54 66,0 27 56 50 6,0 6 3.60 24000 0.68 5673829 7713VR12-A080Z08R 68 80,0 27 68 50 6,0 8 2.75 21500 1.08 kennametal.com B106
