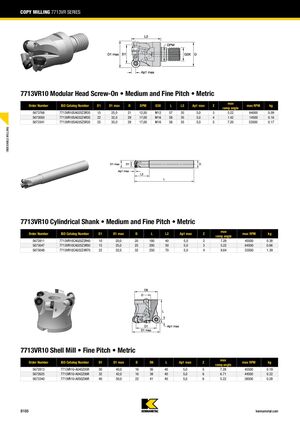

COPY MILLING 7713VR SERIES 7713VR10 Modular Head Screw-On • Medium and Fine Pitch • Metric max Order Number ISO Catalog Number D1 D1 max D DPM G3X L L2 Ap1 max Z max RPM kg ramp angle 5673768 7713VR10SA025Z3R35 15 25,0 21 12,50 M12 57 35 5,0 3 5.22 64000 0.09 5673050 7713VR10SA032Z4R35 22 32,0 29 17,00 M16 58 35 5,0 4 1.42 14500 0.16 5673341 7713VR10SA035Z5R35 25 35,0 29 17,00 M16 58 35 5,0 5 7.20 53500 0.17 INDEXABLE MILLING 7713VR10 Cylindrical Shank • Medium and Fine Pitch • Metric max Order Number ISO Catalog Number D1 D1 max D L L2 Ap1 max Z max RPM kg ramp angle 5672811 7713VR10CA020Z2R40 10 20,0 20 180 40 5,0 2 7.28 45500 0.38 5673047 7713VR10CA025Z3R50 15 25,0 25 200 50 5,0 3 5.22 64500 0.66 5673048 7713VR10CA032Z4R70 22 32,0 32 250 70 5,0 4 8.64 53500 1.39 7713VR10 Shell Mill • Fine Pitch • Metric max Order Number ISO Catalog Number D1 D1 max D D6 L Ap1 max Z max RPM kg ramp angle 5672813 7713VR10-A040Z05R 30 40,0 16 36 40 5,0 5 7.28 45500 0.19 5672625 7713VR10-A042Z06R 32 42,0 16 38 40 5,0 6 6.71 44500 0.22 5673340 7713VR10-A050Z06R 40 50,0 22 41 40 5,0 6 5.22 38500 0.28 B105 kennametal.com
