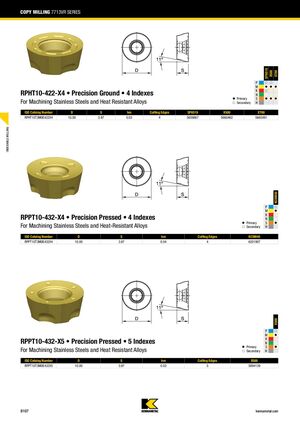

ФРЕЗЕРОВАНИЕ КОПИРОВАНИЕМ, СЕРИЯ 7713VR
RPHT10-422-X4 • Precision Ground • 4 индекса
Для обработки нержавеющих сталей и жаропрочных сплавов
| Каталожный номер ISO | D | S | hm | Режущие кромки | SP6519 | X500 | X700 |
|---|---|---|---|---|---|---|---|
| RPHT10T3M0E422X4 | 10.00 | 3.97 | 0.03 | 4 | 5659867 | 5660462 | 5665491 |
RPPT10-432-X4 • Precision Pressed • 4 индекса
Для обработки нержавеющих сталей и жаропрочных сплавов
| Каталожный номер ISO | D | S | hm | Режущие кромки | KCSM40 |
|---|---|---|---|---|---|
| RPPT10T3M0E432X4 | 10.00 | 3.97 | 0.04 | 4 | 6201907 |
RPPT10-432-X5 • Precision Pressed • 5 индексов
Для обработки нержавеющих сталей и жаропрочных сплавов
| Каталожный номер ISO | D | S | hm | Режущие кромки | X500 |
|---|---|---|---|---|---|
| RPPT10T3M0E432X5 | 10.00 | 3.97 | 0.03 | 5 | 5894139 |
