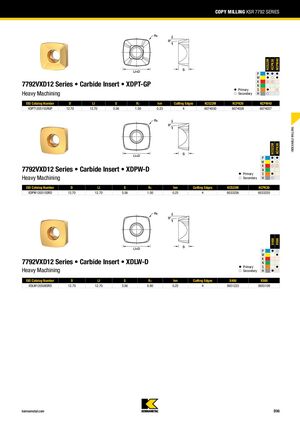

Копийное фрезерование KSR 7792
Серия 7792VXD12 • Твердосплавная пластина • XDPT-GP
Тяжелое фрезерование
| Номер по каталогу ISO | D | LI | S | RH | hm | Режущие кромки | KC522M | KCPK30 | KCPM40 |
|---|---|---|---|---|---|---|---|---|---|
| XDPT120515SRGP | 12,70 | 12,70 | 5,56 | 1,50 | 0,23 | 4 | 6074030 | 6074028 | 6074027 |
Основное — применимо, Вторичное — не применимо
Серия 7792VXD12 • Твердосплавная пластина • XDPW-D
Тяжелое фрезерование
| Номер по каталогу ISO | D | LI | S | RH | hm | Режущие кромки | KC522M | KCPK30 |
|---|---|---|---|---|---|---|---|---|
| XDPW120515SRD | 12,70 | 12,70 | 5,56 | 1,50 | 0,25 | 4 | 6033256 | 6033255 |
Серия 7792VXD12 • Твердосплавная пластина • XDLW-D
Тяжелое фрезерование
| Номер по каталогу ISO | D | LI | S | RH | hm | Режущие кромки | X400 | X500 |
|---|---|---|---|---|---|---|---|---|
| XDLW120508SRD | 12,70 | 12,70 | 5,56 | 0,80 | 0,25 | 4 | 5651223 | 5655109 |
