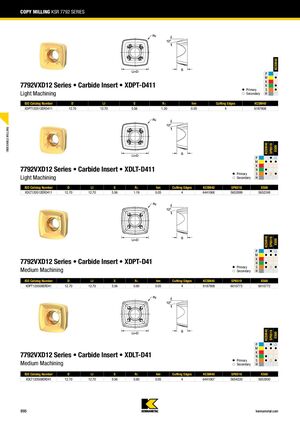

Копировальное фрезерование KSR 7792 SERIES
7792VXD12 Series • Твердосплавная пластина • XDPT-D411
Легкая обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KCSM40 |
|---|---|---|---|---|---|---|---|
| XDPT120512ERD411 | 12.70 | 12.70 | 5.56 | 1.20 | 0.05 | 4 | 6187808 |
7792VXD12 Series • Твердосплавная пластина • XDLT-D411
Легкая обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KCSM40 | SP6519 | X500 |
|---|---|---|---|---|---|---|---|---|---|
| XDLT120512ERD411 | 12.70 | 12.70 | 5.56 | 1.19 | 0.05 | 4 | 6441068 | 5652899 | 5652248 |
7792VXD12 Series • Твердосплавная пластина • XDPT-D41
Средняя обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KCSM40 | SP6519 | X500 |
|---|---|---|---|---|---|---|---|---|---|
| XDPT120508ERD41 | 12.70 | 12.70 | 5.56 | 0.80 | 0.05 | 4 | 6187806 | 6010773 | 6010772 |
7792VXD12 Series • Твердосплавная пластина • XDLT-D41
Средняя обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KCSM40 | SP6519 | X500 |
|---|---|---|---|---|---|---|---|---|---|
| XDLT120508ERD41 | 12.70 | 12.70 | 5.56 | 0.80 | 0.05 | 4 | 6441067 | 5654220 | 5653930 |
