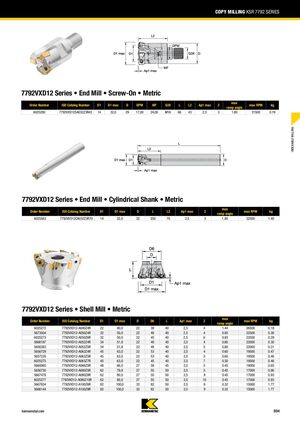

COPY MILLING KSR 7792 SERIES 7792VXD12 Series • End Mill • Screw-On • Metric max Order Number ISO Catalog Number D1 D1 max D DPM WF G3X L L2 Ap1 max Z max RPM kg ramp angle 6025280 7792VXD12SA032Z3R43 14 32,0 29 17,00 24,00 M16 66 43 2,5 3 1.80 31500 0.19 INDEXABLE MILLING 7792VXD12 Series • End Mill • Cylindrical Shank • Metric max Order Number ISO Catalog Number D1 D1 max D L L2 Ap1 max Z max RPM kg ramp angle 6025563 7792VXD12CA032Z3R70 14 32,0 32 250 70 2,5 3 1.80 32500 1.40 7792VXD12 Series • Shell Mill • Metric max Order Number ISO Catalog Number D1 D1 max D D6 L Ap1 max Z max RPM kg ramp angle 6025272 7792VXD12-A040Z4R 22 40,0 22 38 40 2,5 4 1.44 26500 0.18 5673504 7792VXD12-A050Z4R 32 50,0 22 48 40 2,5 4 0.93 22500 0.30 6025273 7792VXD12-A050Z6R 32 50,0 22 45 40 2,5 6 0.93 22500 0.29 5666187 7792VXD12-A052Z4R 34 51,8 22 48 40 2,5 4 0.80 22000 0.30 5656383 7792VXD12-A052Z5R 34 51,8 22 48 40 2,5 5 0.80 22000 0.31 5656729 7792VXD12-A063Z4R 45 63,0 22 53 40 2,5 4 0.60 19500 0.47 5657235 7792VXD12-A063Z5R 45 63,0 22 53 40 2,5 5 0.60 19500 0.46 6025275 7792VXD12-A063Z7R 45 63,0 22 45 40 2,5 7 0.30 19500 0.46 5660065 7792VXD12-A066Z5R 48 66,0 27 58 45 2,5 5 0.45 19000 0.65 5656730 7792VXD12-A080Z5R 62 79,8 27 55 50 2,5 5 0.45 17000 0.90 5667478 7792VXD12-A080Z8R 62 80,0 27 55 50 2,5 8 0.45 17000 0.93 6025277 7792VXD12-A080Z10R 62 80,0 27 55 50 2,5 10 0.45 17000 0.93 5667834 7792VXD12-A100Z6R 82 100,0 32 82 50 2,5 6 0.32 15000 1.77 5666144 7792VXD12-A100Z9R 82 100,0 32 82 50 2,5 9 0.32 15000 1.77 kennametal.com B94
