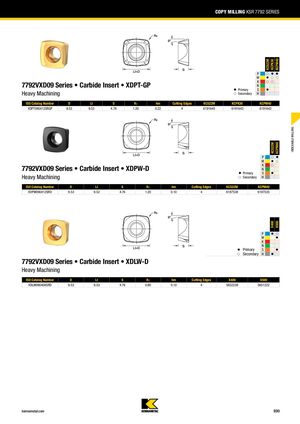

Копировальное фрезерование KSR 7792 SERIES
7792VXD09 Series • Твердосплавная пластина • XDPT-GP
Тяжелая обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KC522M | KCPK30 | KCPM40 |
|---|---|---|---|---|---|---|---|---|---|
| XDPT090412SRGP | 9.53 | 9.53 | 4.76 | 1.20 | 0.22 | 4 | 6191645 | 6191643 | 6191642 |
7792VXD09 Series • Твердосплавная пластина • XDPW-D
Тяжелая обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KC522M | KCPM40 |
|---|---|---|---|---|---|---|---|---|
| XDPW090412SRD | 9.53 | 9.52 | 4.76 | 1.20 | 0.10 | 4 | 6187538 | 6187535 |
7792VXD09 Series • Твердосплавная пластина • XDLW-D
Тяжелая обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | X400 | X500 |
|---|---|---|---|---|---|---|---|---|
| XDLW090408SRD | 9.53 | 9.53 | 4.76 | 0.80 | 0.10 | 4 | 5652239 | 5651222 |
