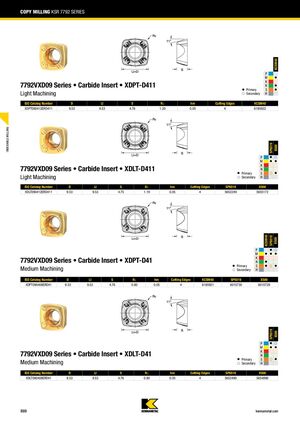

Копировальное фрезерование KSR 7792 SERIES
7792VXD09 Series • Твердосплавная пластина • XDPT-D411
Легкая обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KCSM40 |
|---|---|---|---|---|---|---|---|
| XDPT090412ERD411 | 9.53 | 9.53 | 4.76 | 1.20 | 0.05 | 4 | 6185922 |
7792VXD09 Series • Твердосплавная пластина • XDLT-D411
Легкая обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | SP6519 | X500 |
|---|---|---|---|---|---|---|---|---|
| XDLT090412ERD411 | 9.53 | 9.53 | 4.75 | 1.19 | 0.05 | 4 | 5652249 | 5655172 |
7792VXD09 Series • Твердосплавная пластина • XDPT-D41
Средняя обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | KCSM40 | SP6519 | X500 |
|---|---|---|---|---|---|---|---|---|---|
| XDPT090408ERD41 | 9.53 | 9.53 | 4.76 | 0.80 | 0.05 | 4 | 6185921 | 6010730 | 6010729 |
7792VXD09 Series • Твердосплавная пластина • XDLT-D41
Средняя обработка
| Номер ISO каталога | D | LI | S | RH | hm | Режущие кромки | SP6519 | X500 |
|---|---|---|---|---|---|---|---|---|
| XDLT090408ERD41 | 9.53 | 9.53 | 4.76 | 0.80 | 0.05 | 4 | 5652490 | 5654896 |
