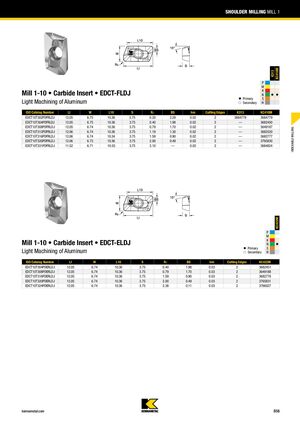

ТОРЦЕВОЕ ФРЕЗЕРОВАНИЕ MILL 1
Mill 1-10 • Твердосплавная пластина • EDCT-FLDJ
Чистовая обработка алюминия
| Номер каталога ISO | LI | W | L10 | S | RH | BS | hm | Режущих кромок | K313 | KC410M |
|---|---|---|---|---|---|---|---|---|---|---|
| EDCT10T302PDFRLDJ | 12.05 | 6.75 | 10.36 | 3.75 | 0.20 | 2.29 | 0.02 | 2 | 3684778 | 3684779 |
| EDCT10T304PDFRLDJ | 12.05 | 6.75 | 10.36 | 3.75 | 0.40 | 1.98 | 0.02 | 2 | — | 3682450 |
| EDCT10T308PDFRLDJ | 12.05 | 6.74 | 10.36 | 3.75 | 0.79 | 1.70 | 0.02 | 2 | — | 3649187 |
| EDCT10T312PDFRLDJ | 12.06 | 6.74 | 10.36 | 3.75 | 1.19 | 1.30 | 0.02 | 2 | — | 3682520 |
| EDCT10T316PDFRLDJ | 12.06 | 6.74 | 10.34 | 3.75 | 1.59 | 0.90 | 0.02 | 2 | — | 3682777 |
| EDCT10T320PDFRLDJ | 12.06 | 6.73 | 10.36 | 3.75 | 2.00 | 0.49 | 0.02 | 2 | — | 3765830 |
| EDCT10T331PDFRLDJ | 11.52 | 6.71 | 10.03 | 3.75 | 3.10 | — | 0.02 | 2 | — | 3684824 |
Mill 1-10 • Твердосплавная пластина • EDCT-ELDJ
Чистовая обработка алюминия
| Номер каталога ISO | LI | W | L10 | S | RH | BS | hm | Режущих кромок | KC422M |
|---|---|---|---|---|---|---|---|---|---|
| EDCT10T304PDERLDJ | 12.05 | 6.74 | 10.36 | 3.75 | 0.40 | 1.98 | 0.03 | 2 | 3682451 |
| EDCT10T308PDERLDJ | 12.05 | 6.74 | 10.36 | 3.75 | 0.79 | 1.70 | 0.03 | 2 | 3649188 |
| EDCT10T316PDERLDJ | 12.05 | 6.74 | 10.36 | 3.75 | 1.59 | 0.90 | 0.03 | 2 | 3682778 |
| EDCT10T320PDERLDJ | 12.05 | 6.74 | 10.36 | 3.75 | 2.00 | 0.49 | 0.03 | 2 | 3765831 |
| EDCT10T324PDERLDJ | 12.05 | 6.74 | 10.36 | 3.75 | 2.38 | 0.11 | 0.03 | 2 | 3766027 |
