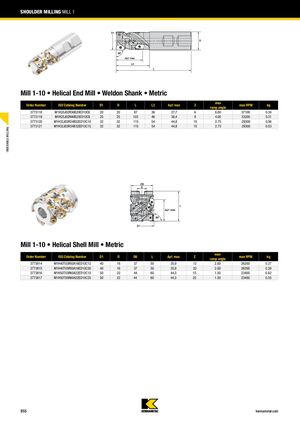

ТОРЦЕВОЕ ФРЕЗЕРОВАНИЕ MILL 1
Mill 1-10 • Спиральная концевая фреза • С хвостовиком Велдон • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D | L | L2 | Ap1 макс | Z | Макс. угол подхода | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 3773118 | M1H20J02R36B20ED10C6 | 20 | 20 | 87 | 36 | 27,7 | 6 | 6.00 | 37100 | 0.34 |
| 3773119 | M1H25J02R46B25ED10C8 | 25 | 25 | 103 | 46 | 36,4 | 8 | 4.00 | 33200 | 0.31 |
| 3773120 | M1H32J02R54B32ED10C10 | 32 | 32 | 115 | 54 | 44,8 | 10 | 2.75 | 29300 | 0.56 |
| 3773121 | M1H32J03R54B32ED10C15 | 32 | 32 | 115 | 54 | 44,8 | 15 | 2.75 | 29300 | 0.53 |
Mill 1-10 • Спиральная цилиндрическая фреза • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D | D6 | L | Ap1 макс | Z | Макс. угол подхода | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 3773814 | M1H40T03R50A16ED10C12 | 40 | 16 | 37 | 50 | 35,9 | 12 | 2.00 | 26200 | 0.27 |
| 3773815 | M1H40T05R50A16ED10C20 | 40 | 16 | 37 | 50 | 35,9 | 20 | 2.00 | 26200 | 0.26 |
| 3773816 | M1H50T03R60A22ED10C15 | 50 | 22 | 44 | 60 | 44,3 | 15 | 1.50 | 23400 | 0.62 |
| 3773817 | M1H50T05R60A22ED10C25 | 50 | 22 | 44 | 60 | 44,3 | 25 | 1.50 | 23400 | 0.55 |
