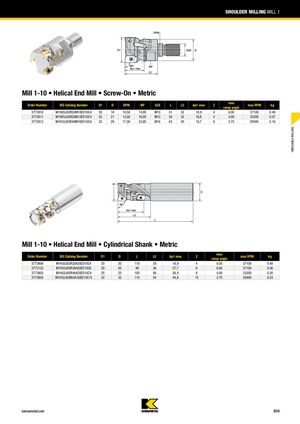

ТОРЦЕВОЕ ФРЕЗЕРОВАНИЕ MILL 1
Mill 1-10 • Спиральная концевая фреза • С резьбовым креплением • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D | DPM | WF | G3X | L | L2 | Ap1 макс | Z | Макс. угол подхода | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3773810 | M1H20J02R32M10ED10C4 | 20 | 18 | 10,50 | 14,95 | M10 | 51 | 32 | 18,9 | 4 | 6.00 | 37100 | 0.49 |
| 3773811 | M1H25J02R32M12ED10C4 | 25 | 21 | 12,50 | 16,95 | M12 | 54 | 32 | 18,8 | 4 | 4.00 | 33200 | 0.07 |
| 3773813 | M1H32J03R40M16ED10C6 | 32 | 29 | 17,00 | 23,95 | M16 | 63 | 40 | 18,7 | 6 | 2.75 | 29300 | 0.18 |
Mill 1-10 • Спиральная концевая фреза • С цилиндрическим хвостовиком • Метрическая
| Номер заказа | Номер каталога ISO | D1 | D | L | L2 | Ap1 макс | Z | Макс. угол подхода | Макс. об/мин | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 3773806 | M1H20J02R28A20ED10C4 | 20 | 20 | 110 | 28 | 18,9 | 4 | 6.00 | 37100 | 0.48 |
| 3773122 | M1H20J02R36A20ED10C6 | 20 | 20 | 90 | 36 | 27,7 | 6 | 6.00 | 37100 | 0.36 |
| 3773803 | M1H25J02R46A25ED10C8 | 25 | 25 | 105 | 46 | 36,4 | 8 | 4.00 | 33200 | 0.30 |
| 3773805 | M1H32J03R54A32ED10C15 | 32 | 32 | 115 | 54 | 44,8 | 15 | 2.75 | 29300 | 0.53 |
