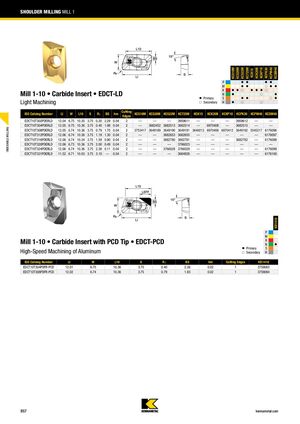

ТОРЦЕВОЕ ФРЕЗЕРОВАНИЕ MILL 1
Mill 1-10 • Твердосплавная пластина • EDCT-LD
Чистовая обработка
| Номер каталога ISO | LI | W | L10 | S | RH | BS | hm | Режущих кромок | KC510M | KC520M | KC522M | KC725M | KCK15 | KCK20B | KCKP10 | KCPK30 | KCPM40 | KCSM40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EDCT10T302PDERLD | 12.04 | 6.75 | 10.35 | 3.75 | 0.20 | 2.29 | 0.04 | 2 | — | — | — | 3959611 | — | — | — | 3959612 | — | — |
| EDCT10T304PDERLD | 12.05 | 6.75 | 10.36 | 3.75 | 0.40 | 1.98 | 0.04 | 2 | — | 3682452 | 3682513 | 3682514 | — | 6970408 | — | 3682515 | — | — |
| EDCT10T308PDERLD | 12.05 | 6.74 | 10.36 | 3.75 | 0.79 | 1.70 | 0.04 | 2 | 3753417 | 3649189 | 3649190 | 3649191 | 3649213 | 6970406 | 6970412 | 3649192 | 5545217 | 6176096 |
| EDCT10T312PDERLD | 12.06 | 6.74 | 10.36 | 3.75 | 1.19 | 1.30 | 0.04 | 2 | — | — | 3682653 | 3682655 | — | — | — | — | — | 6176097 |
| EDCT10T316PDERLD | 12.06 | 6.74 | 10.34 | 3.75 | 1.59 | 0.90 | 0.04 | 2 | — | — | 3682780 | 3682781 | — | — | — | 3682782 | — | 6176098 |
| EDCT10T320PDERLD | 12.06 | 6.73 | 10.36 | 3.75 | 2.00 | 0.49 | 0.04 | 2 | — | — | — | 3766023 | — | — | — | — | — | — |
| EDCT10T324PDERLD | 12.06 | 6.74 | 10.36 | 3.75 | 2.38 | 0.11 | 0.04 | 2 | — | — | 3766028 | 3766029 | — | — | — | — | — | 6176099 |
| EDCT10T331PDERLD | 11.52 | 6.71 | 10.03 | 3.75 | 3.10 | — | 0.04 | 2 | — | — | — | 3684828 | — | — | — | — | — | 6176100 |
Mill 1-10 • Твердосплавная пластина с наконечником из поликристаллического алмаза • EDCT-PCD
Высокоскоростная обработка алюминия
| Номер каталога ISO | LI | W | L10 | S | RH | BS | hm | Режущих кромок | KD1410 |
|---|---|---|---|---|---|---|---|---|---|
| EDCT10T304PDFR-PCD | 12.01 | 6.75 | 10.36 | 3.75 | 0.40 | 2.26 | 0.02 | 1 | 3759083 |
| EDCT10T308PDFR-PCD | 12.02 | 6.74 | 10.36 | 3.75 | 0.79 | 1.83 | 0.02 | 1 | 3759084 |
