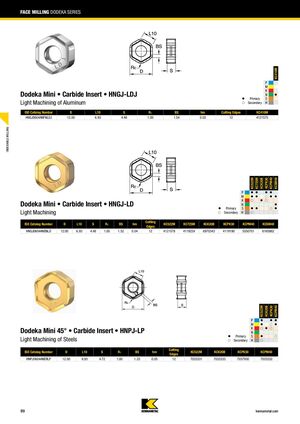

Торцевое фрезерование. Серия DODEKA®
Dodeka Mini • Твердосплавная пластина • HNGJ-LDJ
Легкая обработка алюминия
| Номер каталога ISO | D | L10 | S | RH | BS | hm | Режущие кромки | KC410M |
|---|---|---|---|---|---|---|---|---|
| HNGJ0604ANFNLDJ | 12.00 | 6.93 | 4.48 | 1.00 | 1.54 | 0.02 | 12 | 4121575 |
Dodeka Mini • Твердосплавная пластина • HNGJ-LD
Легкая обработка
| Номер каталога ISO | D | L10 | S | RH | BS | hm | Режущие кромки | KC522M | KC725M | KCK20B | KCPK30 | KCPM40 | KCSM40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HNGJ0604ANENLD | 12.00 | 6.93 | 4.48 | 1.00 | 1.52 | 0.04 | 12 | 4121578 | 4119224 | 6970343 | 4119190 | 5550701 | 6165862 |
Dodeka Mini 45° • Твердосплавная пластина • HNPJ-LP
Легкая обработка сталей
| Номер каталога ISO | D | L10 | S | RH | BS | hm | Режущие кромки | KC522M | KCK20B | KCPK30 | KCPM40 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HNPJ0604ANERLP | 12.00 | 6.93 | 4.72 | 1.00 | 1.33 | 0.05 | 12 | 7033331 | 7033333 | 7037930 | 7033332 |
